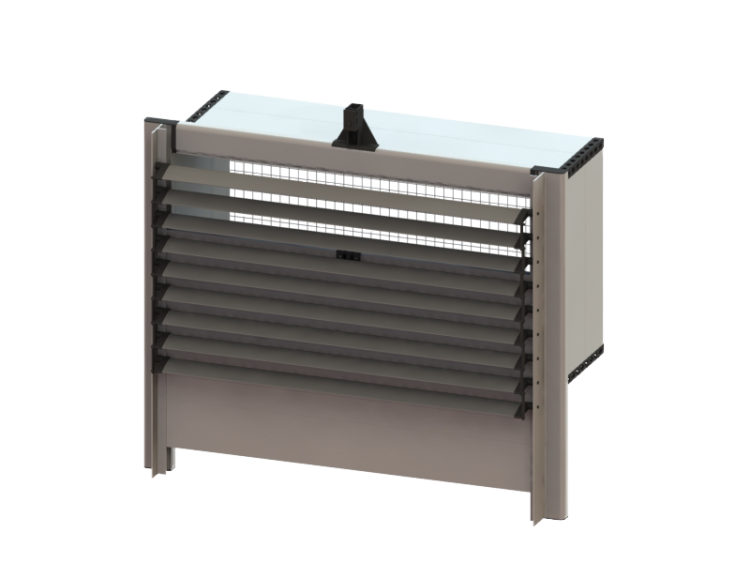

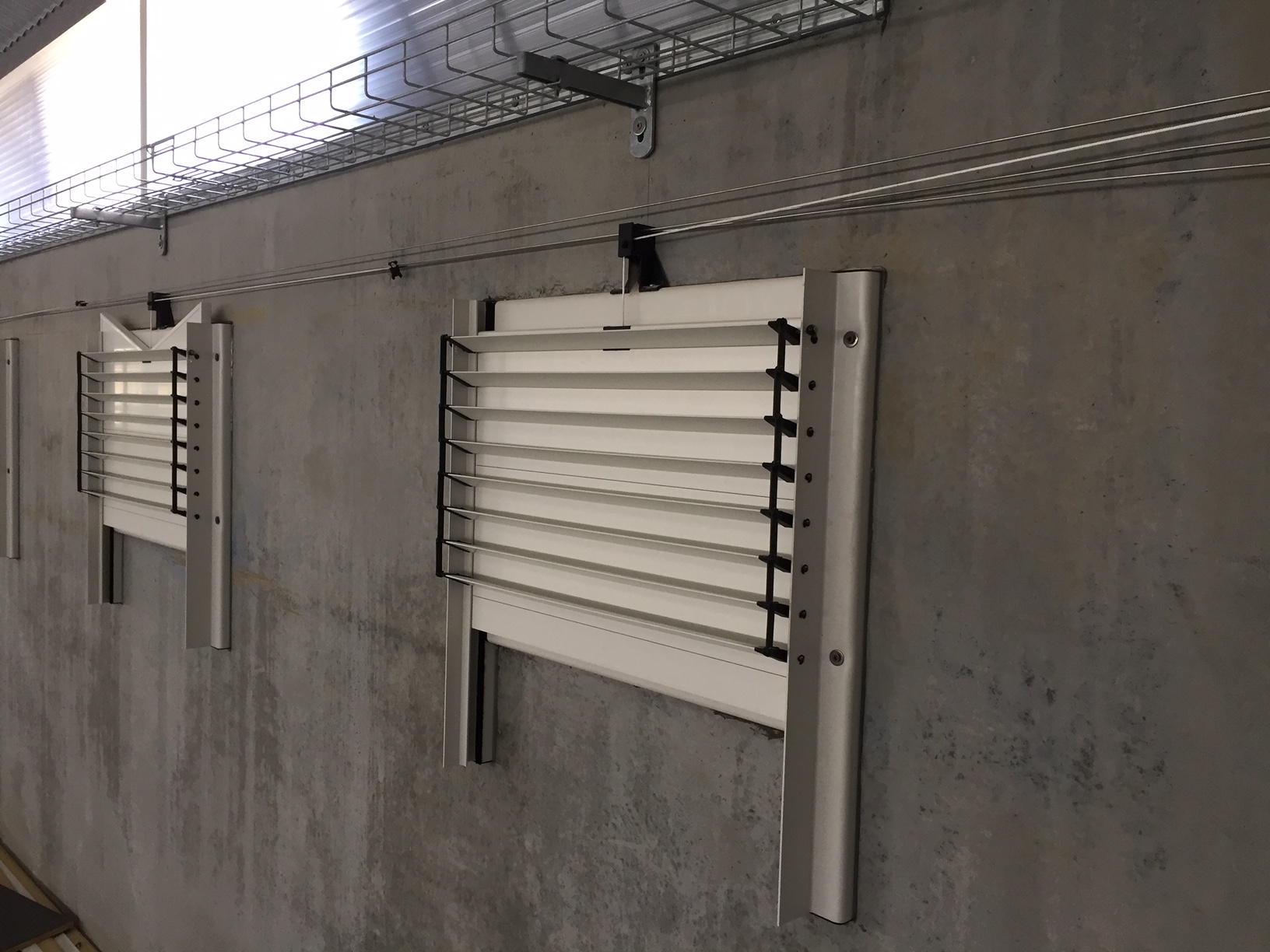

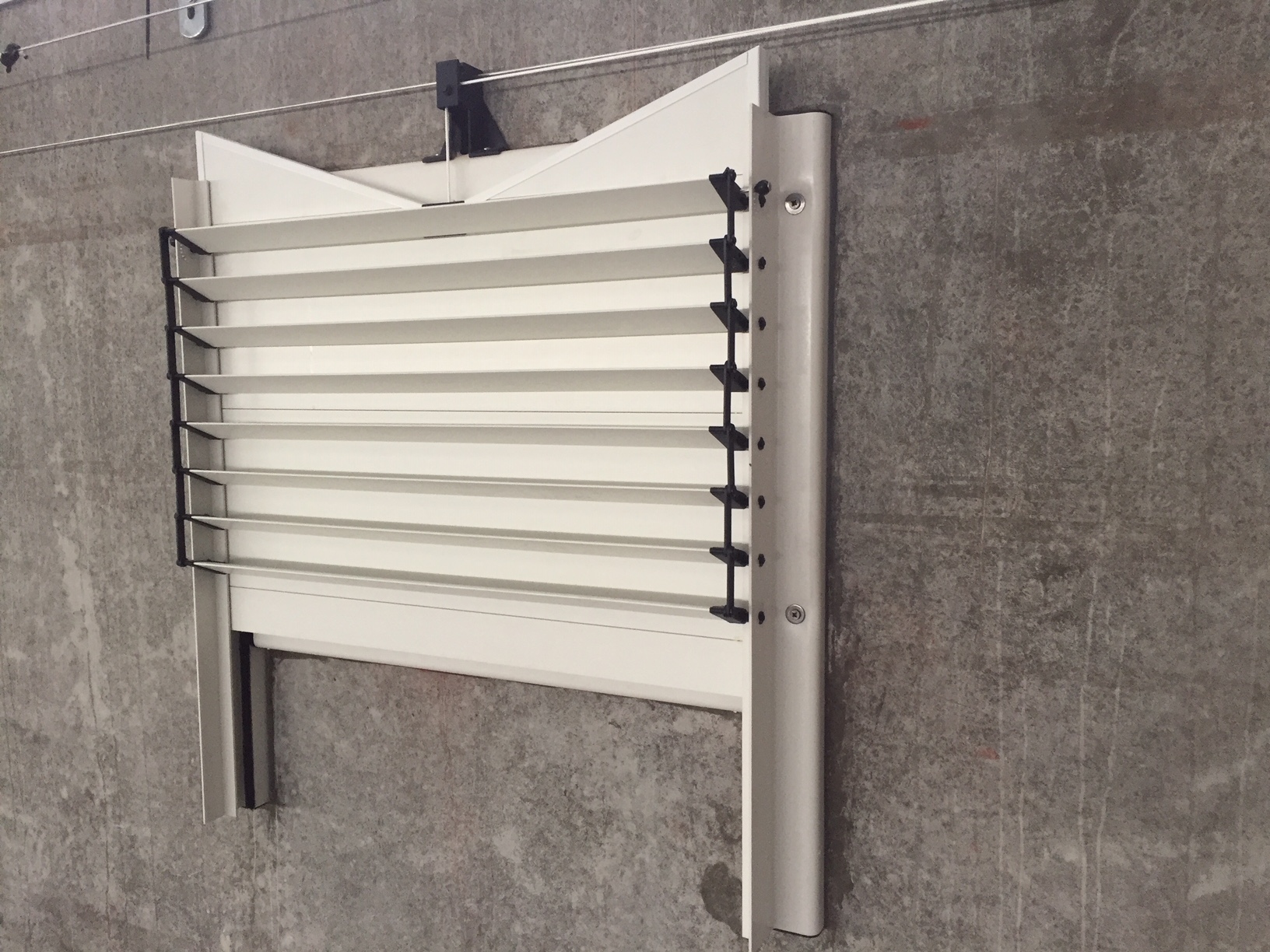

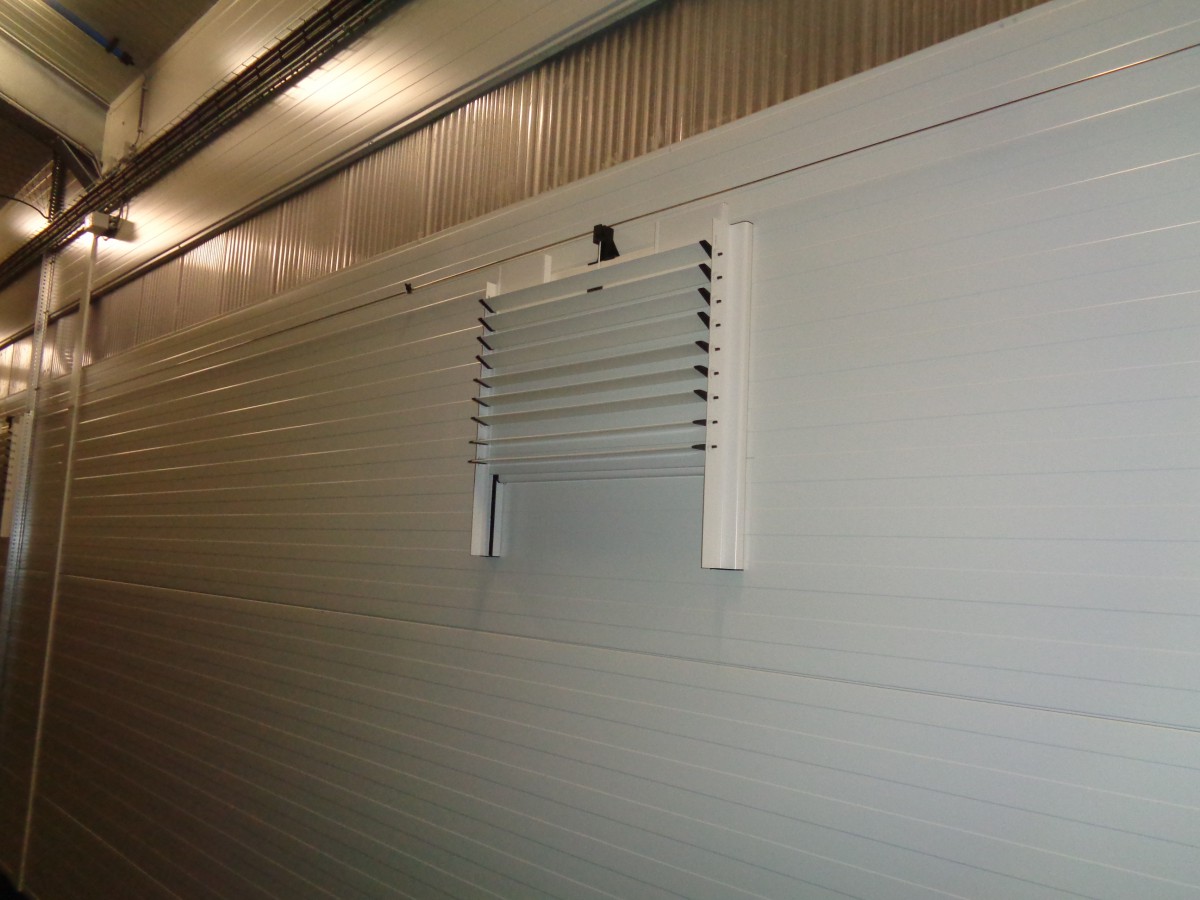

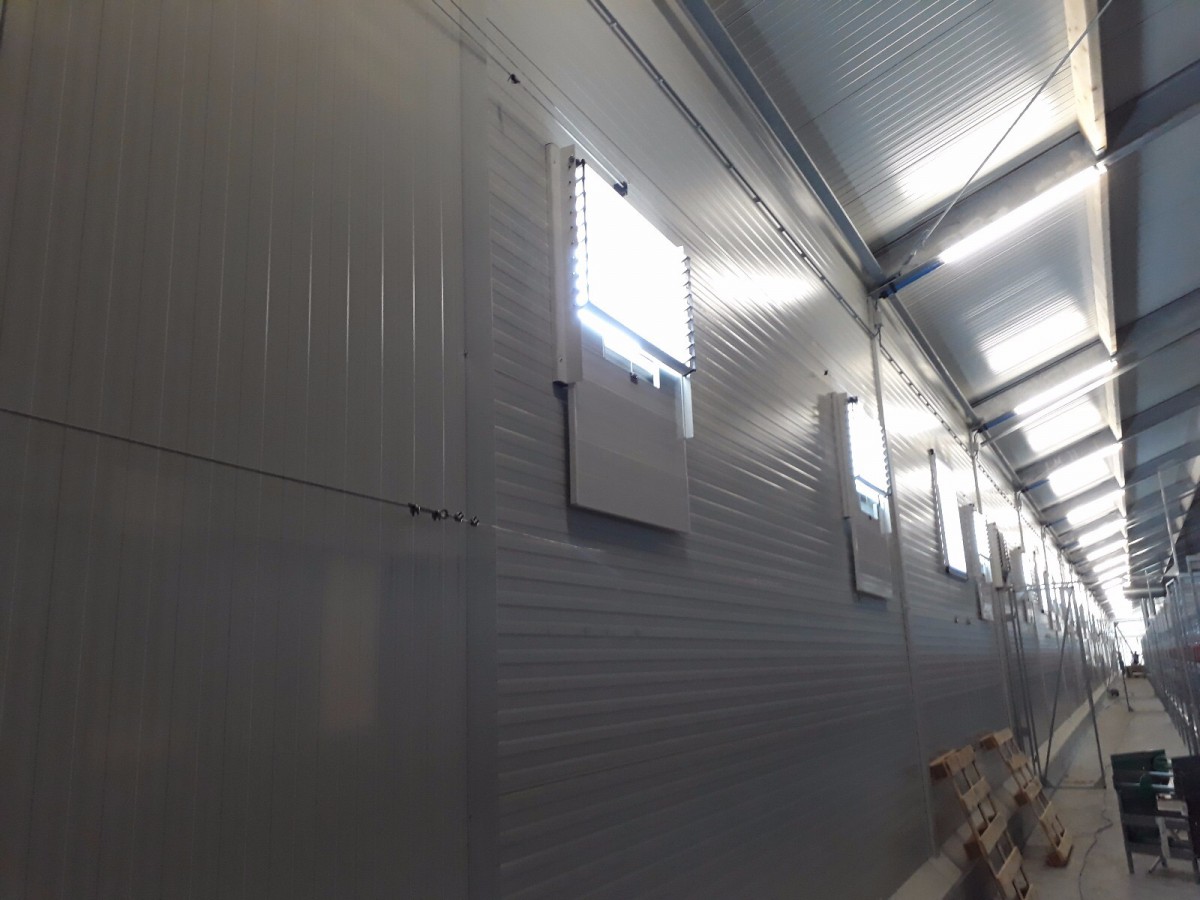

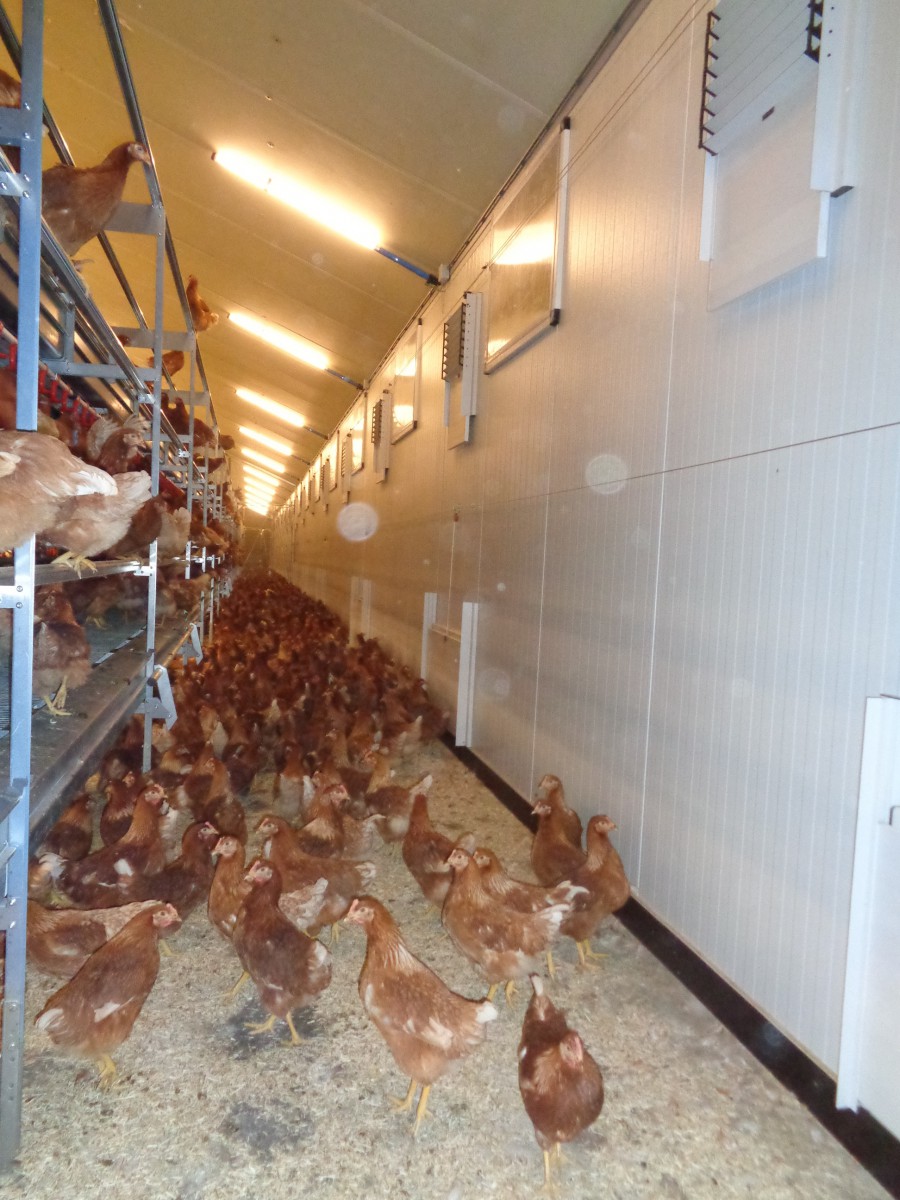

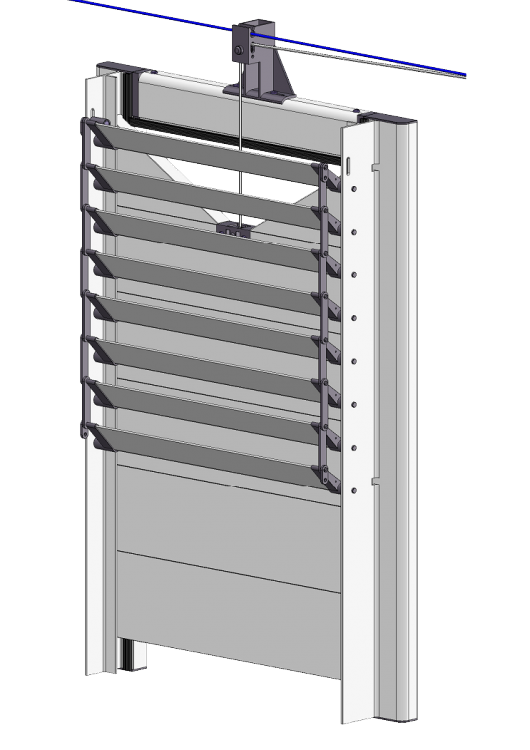

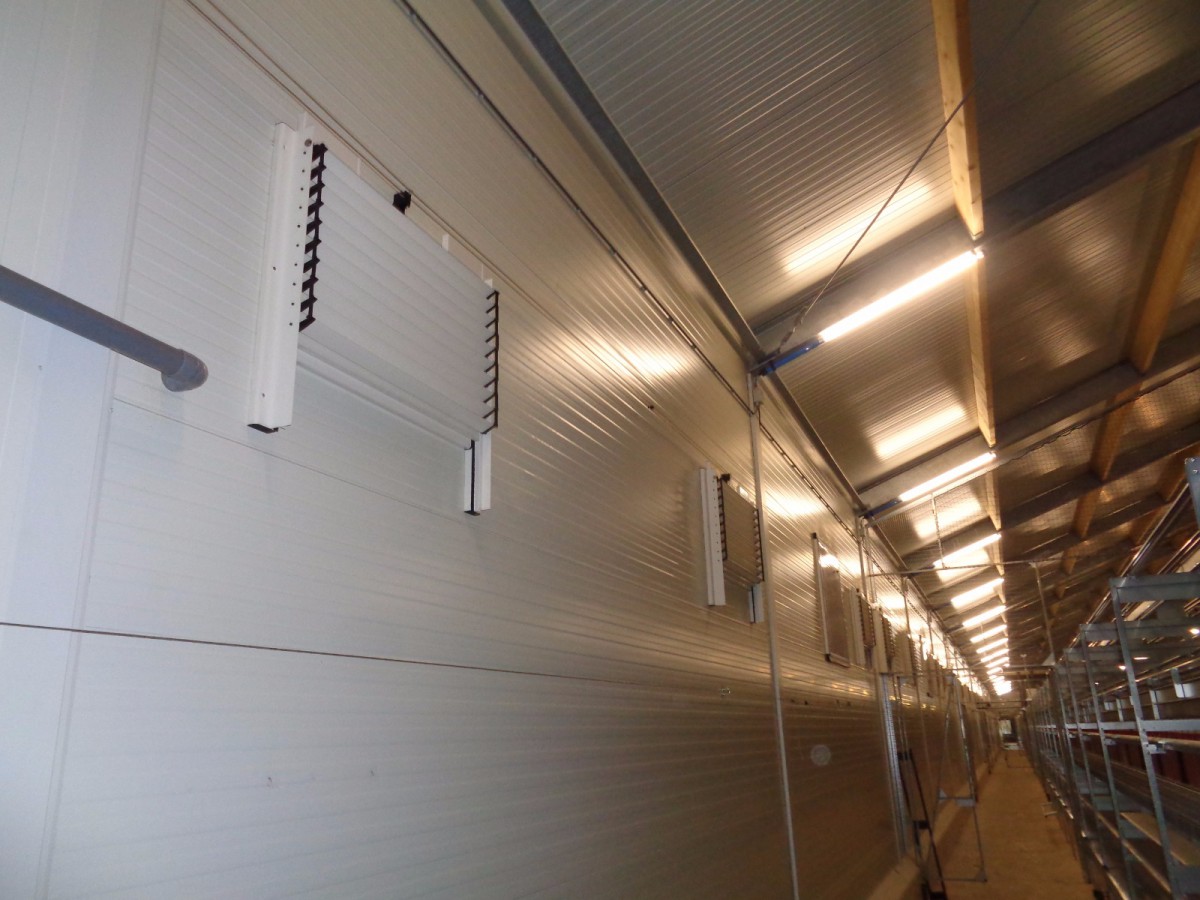

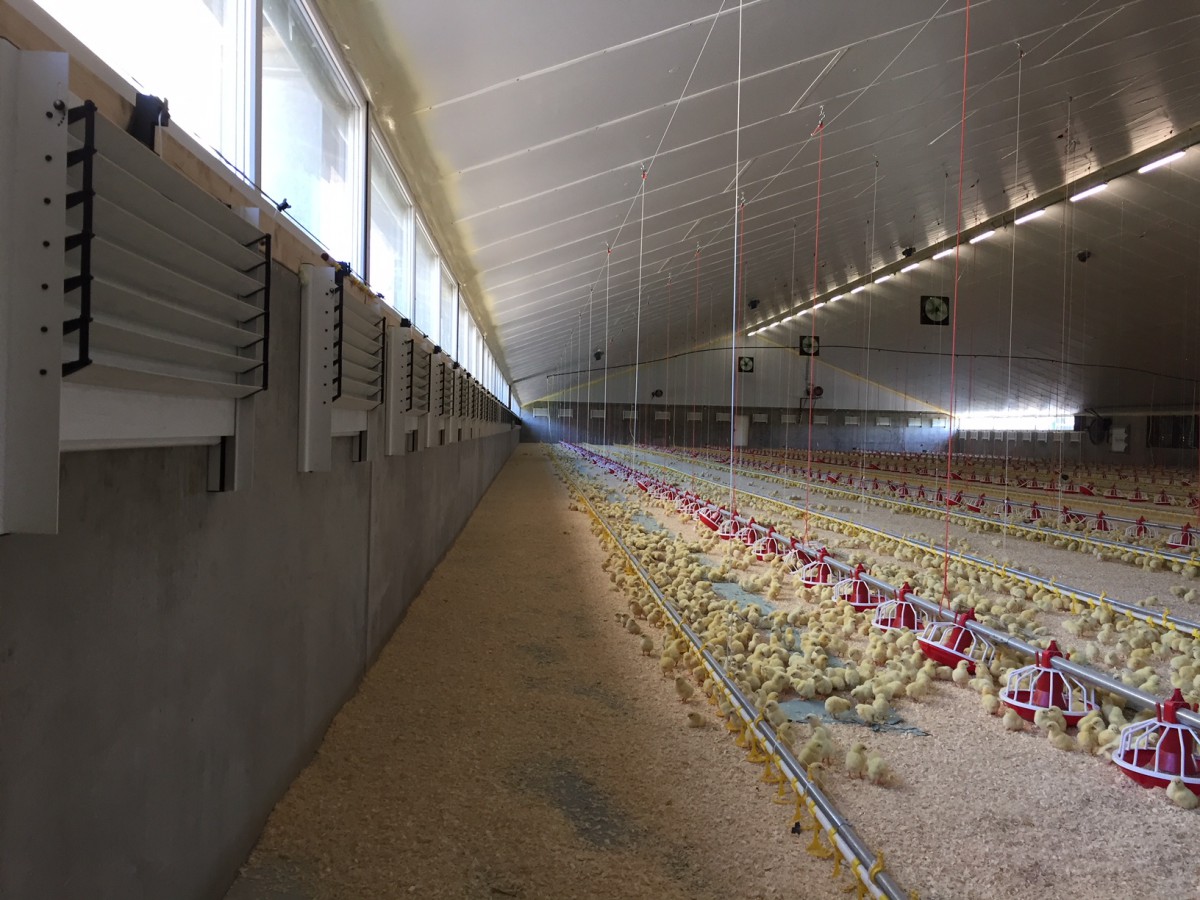

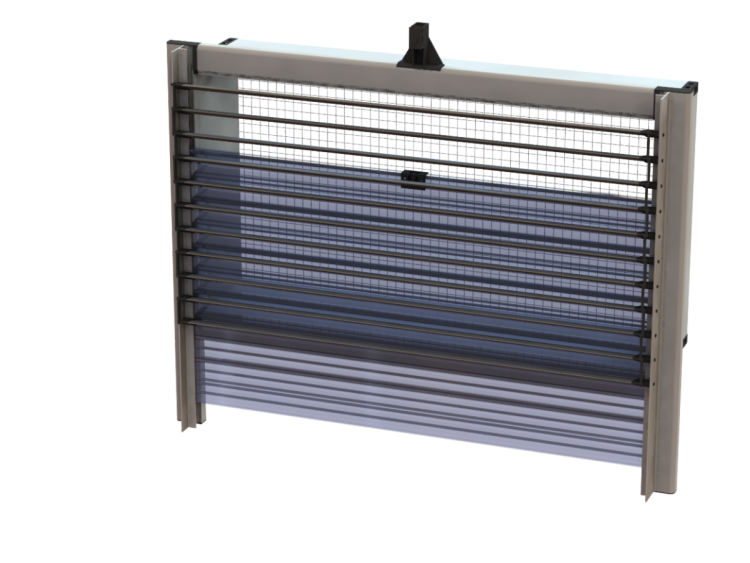

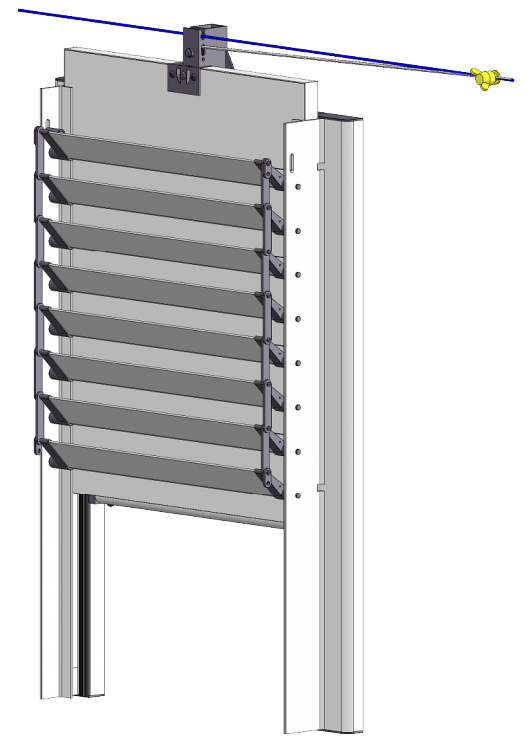

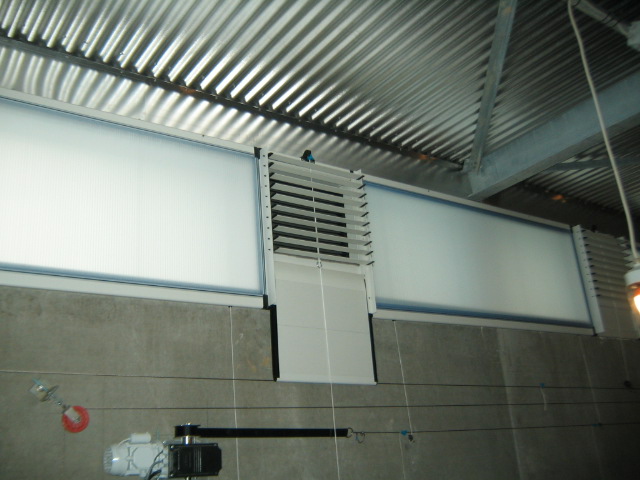

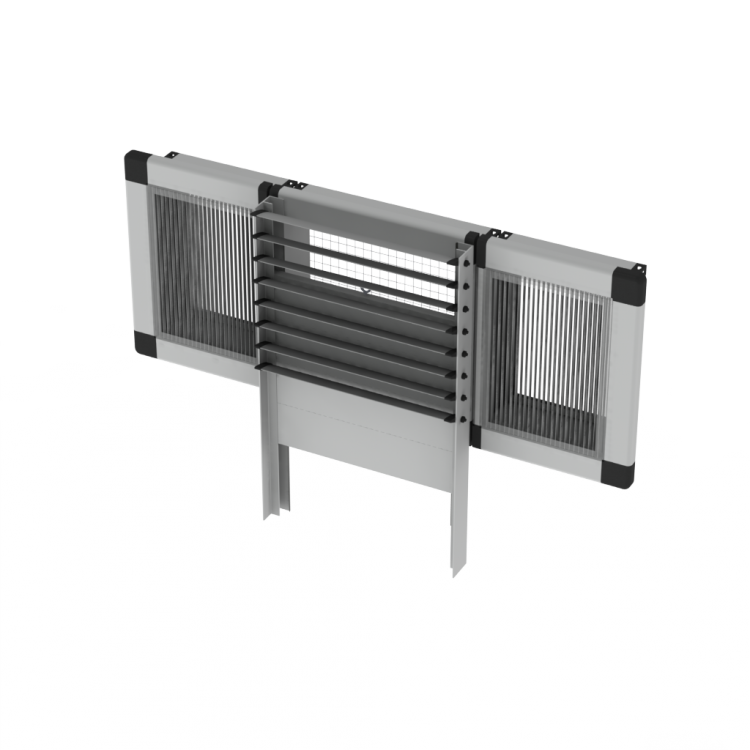

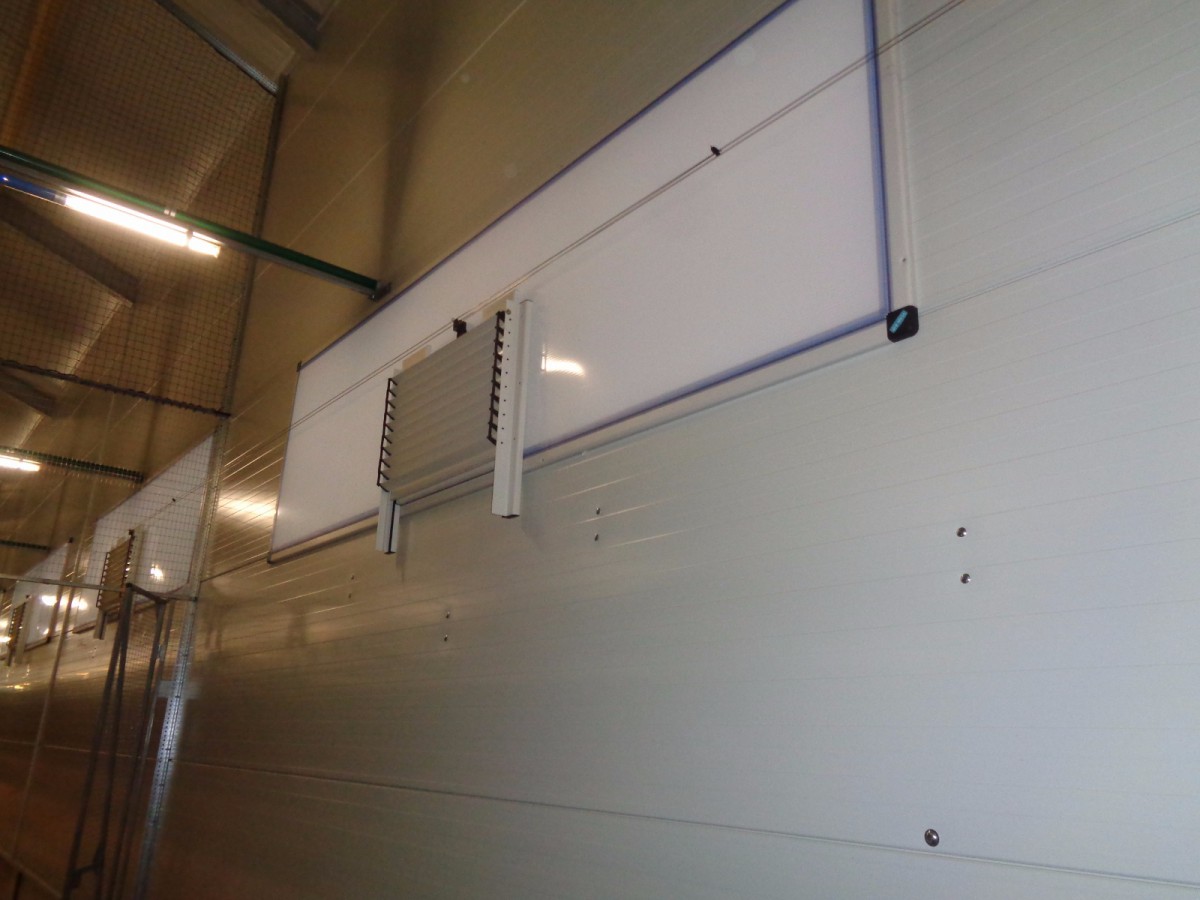

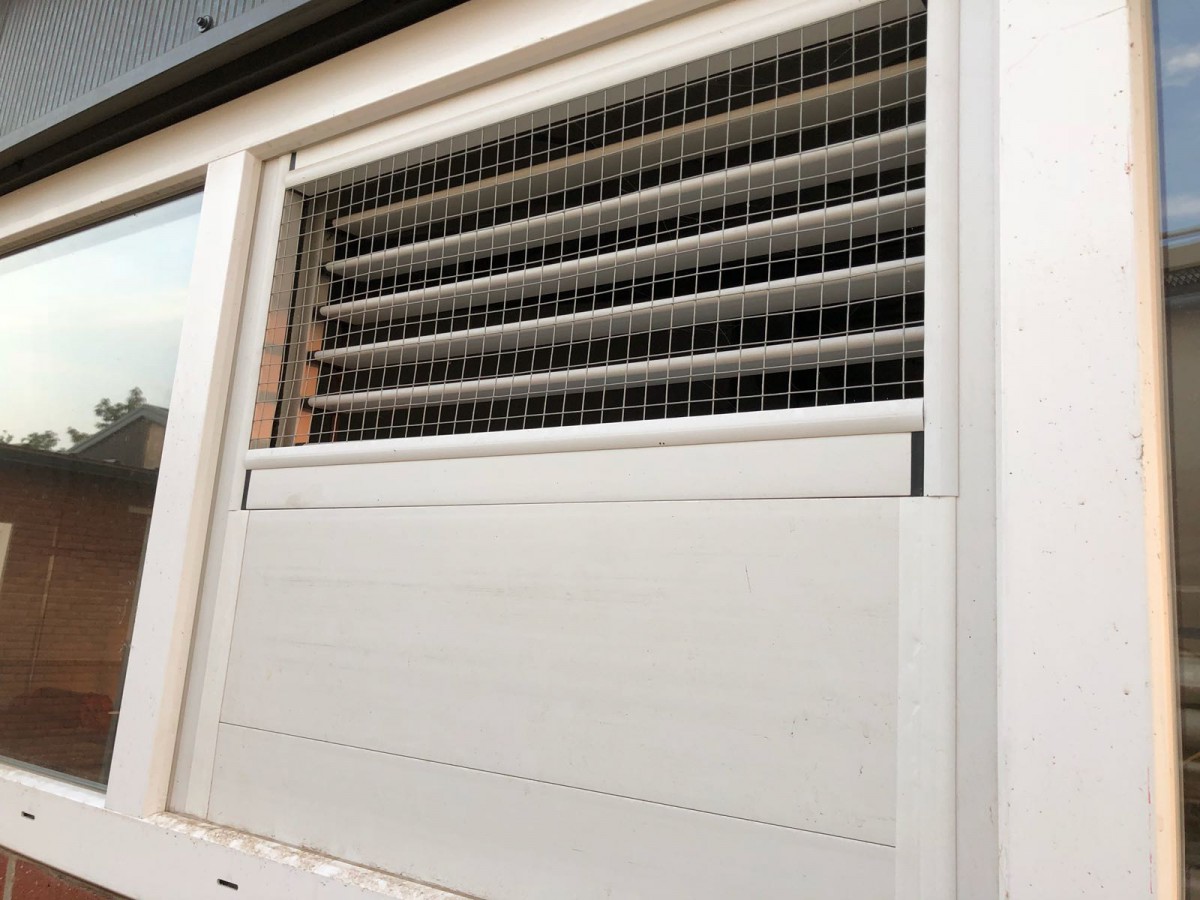

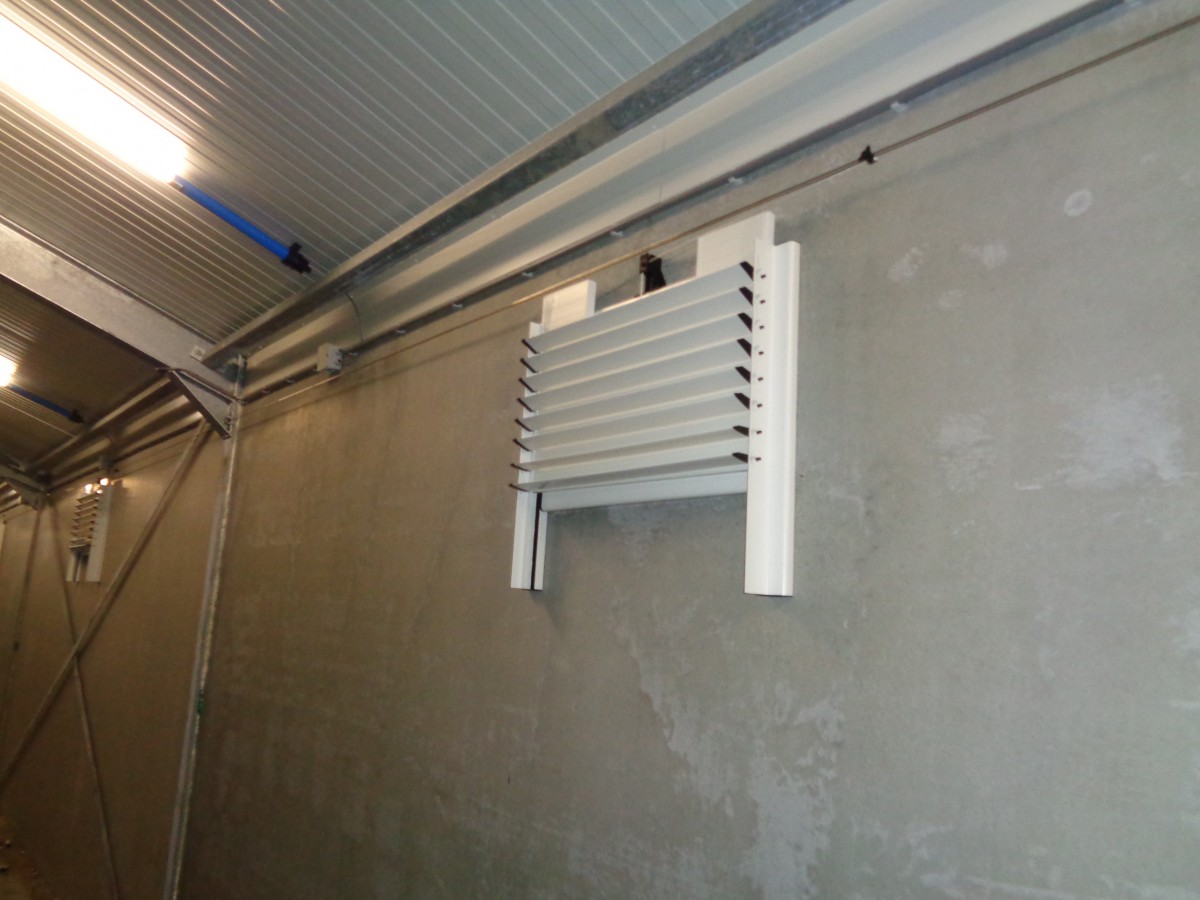

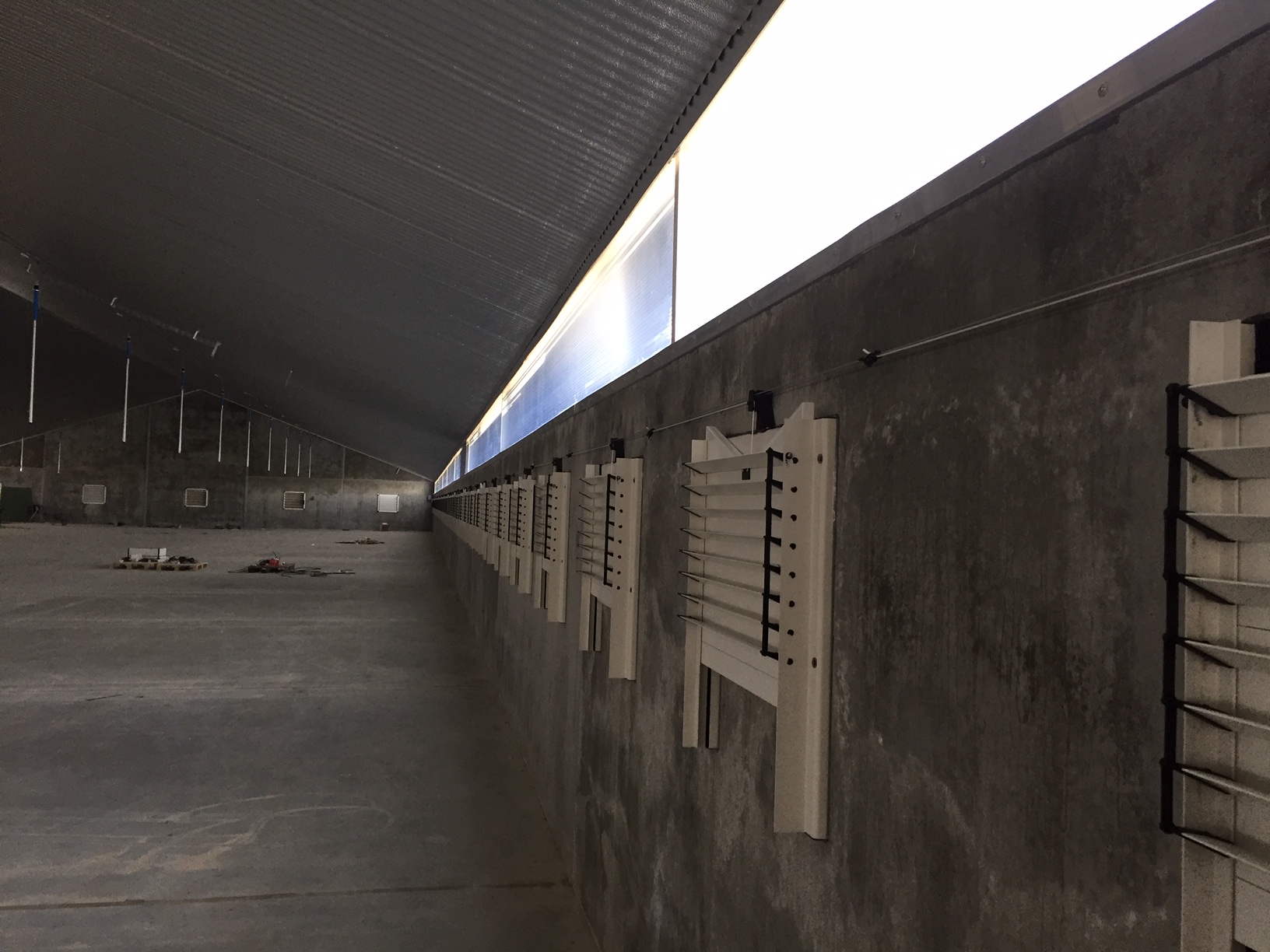

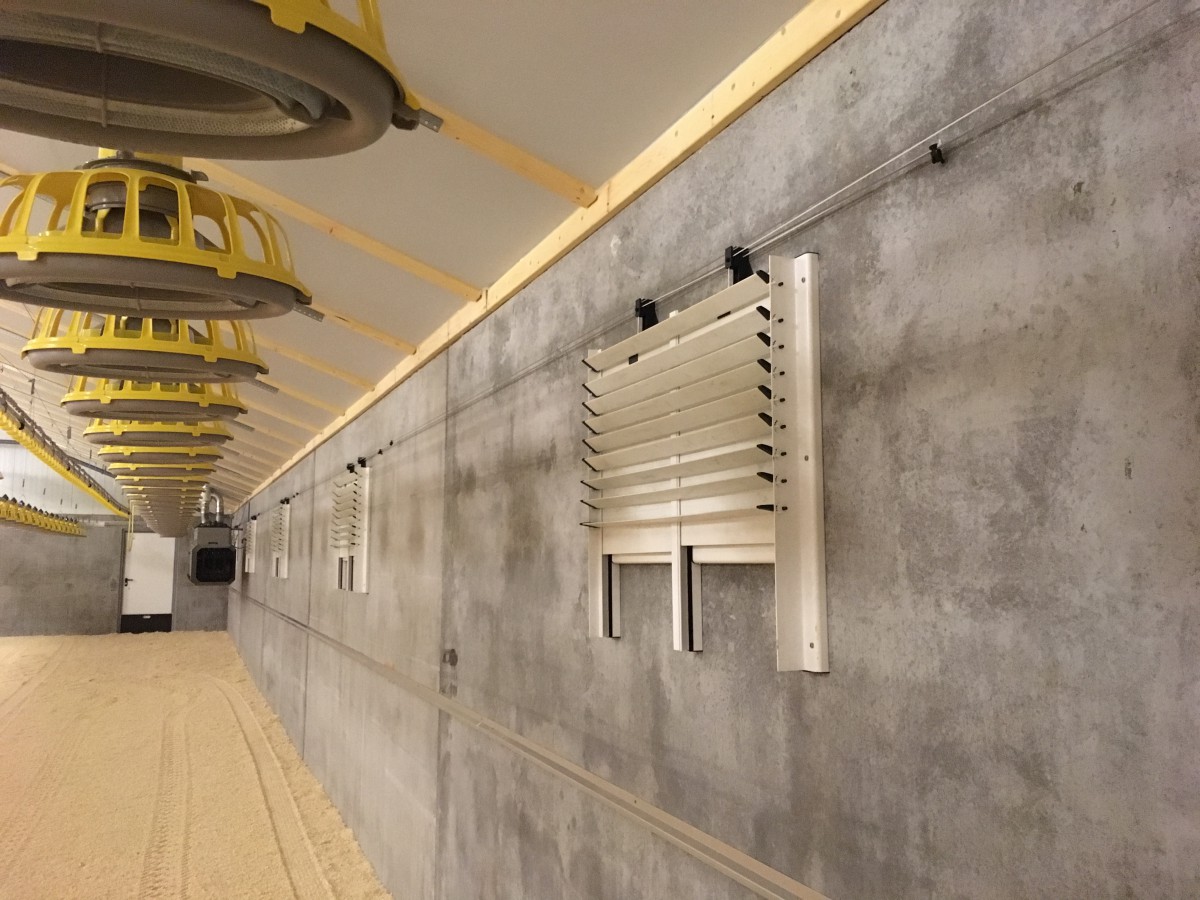

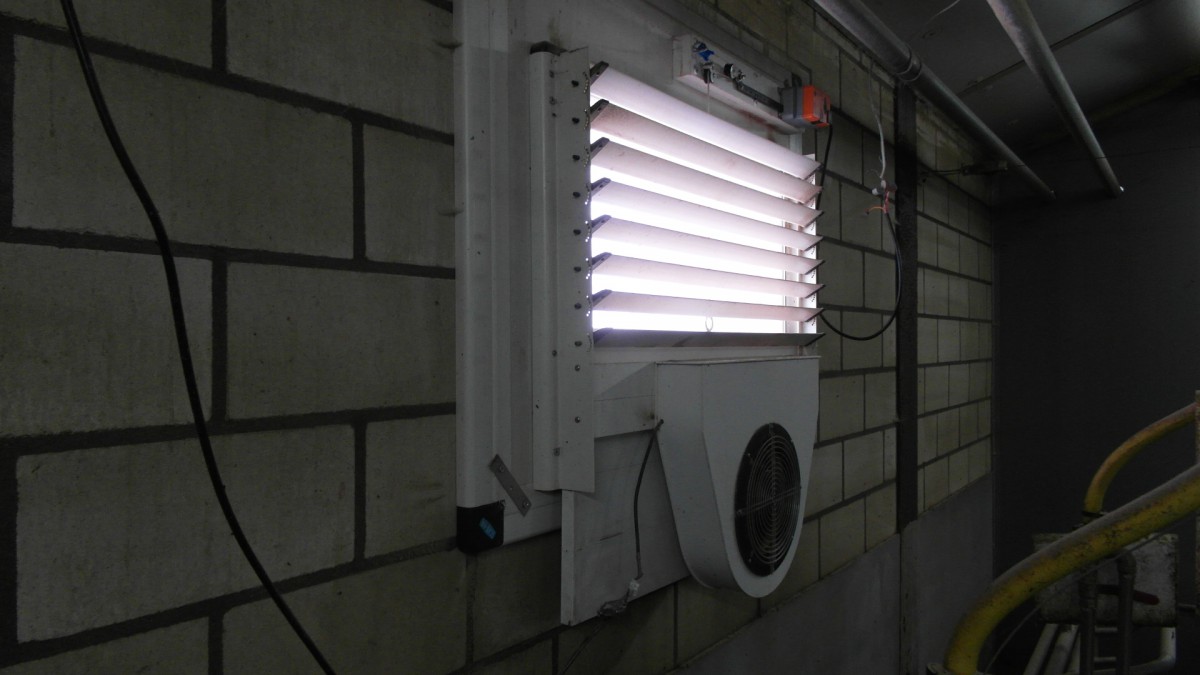

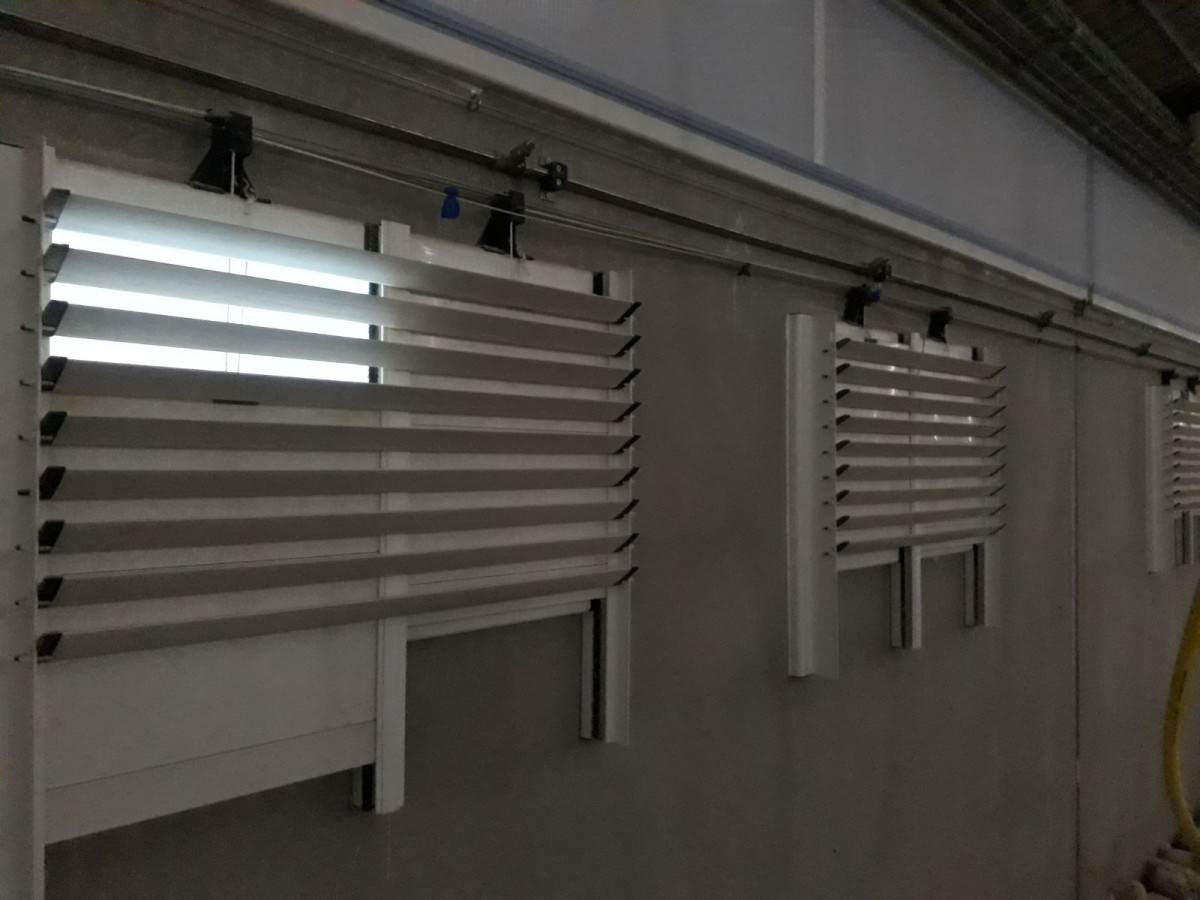

Wall inlets
| Width | 400-1120 mm | In steps of 1 mm |
|---|---|---|
| Height | 345-670 mm | In steps of 25 mm |
| Depth | 0-500 mm | In steps of 25 mm |
Go to our online product configurator for all available models
| Type | Installation dimensions | Net surface | Capacity | Pull force | Stroke length | ||||
|---|---|---|---|---|---|---|---|---|---|
| W | H | D | 10 Pa | 20 Pa | 30 Pa | ||||
| UF-2500 | 540 mm | 345 mm | 100 mm | 1525 cm2 | 1900 (m3/hr) | 2500 (m3/hr) | 3200 (m3/hr) | 2 kg | 350 mm |
| UF-3500 | 640 mm | 395 mm | 100 mm | 2130 cm2 | 2650 (m3/hr) | 3500 (m3/hr) | 4450 (m3/hr) | 2,5 kg | 400 mm |
| UF-5350 | 840 mm | 445 mm | 100 mm | 3240 cm2 | 4050 (m3/hr) | 5350 (m3/hr) | 6800 (m3/hr) | 3,5 kg | 450 mm |
| UF-5450 | 1120 mm | 345 mm | 100 mm | 3294 cm2 | 4100 (m3/hr) | 5450 (m3/hr) | 6900 (m3/hr) | 4 kg | 350 mm |
| UF-7500 | 1040 mm | 495 mm | 100 mm | 4550 cm2 | 5700 (m3/hr) | 7500 (m3/hr) | 9550 (m3/hr) | 4,5 kg | 500 mm |
