Wall Inlet Curved or Straight Flap Single Turning Point GDK/RDK

Wall inlets

Benefits of Wall Inlet Curved or Straight Flap Single Turning Point GDK/RDK

Curved or straight flap with bottom hinge

Optimal air control due to curved flap

Self-opening

Insulated flap

Options

Meervoudige kleppen met gebogen klep

Multiple

Ongeassembleerd

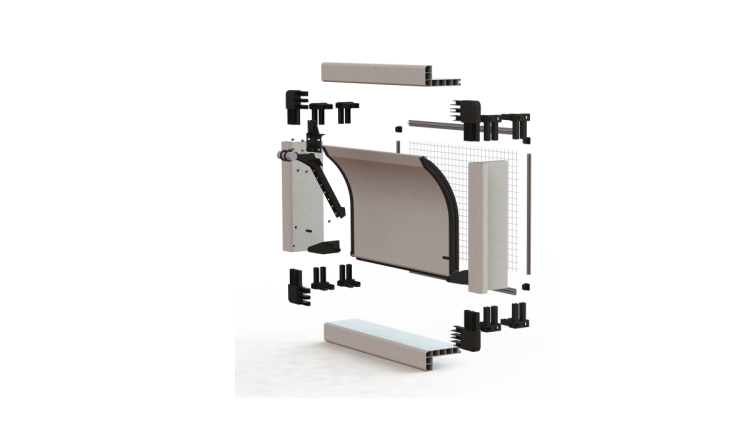

Unassembled

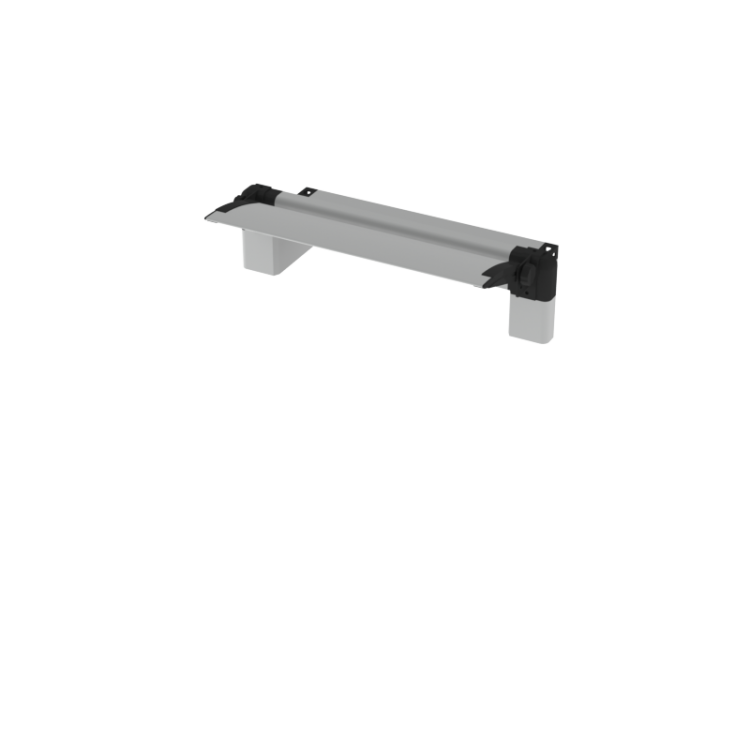

Spoiler 125mm

Deflector 125mm

Transparante klep

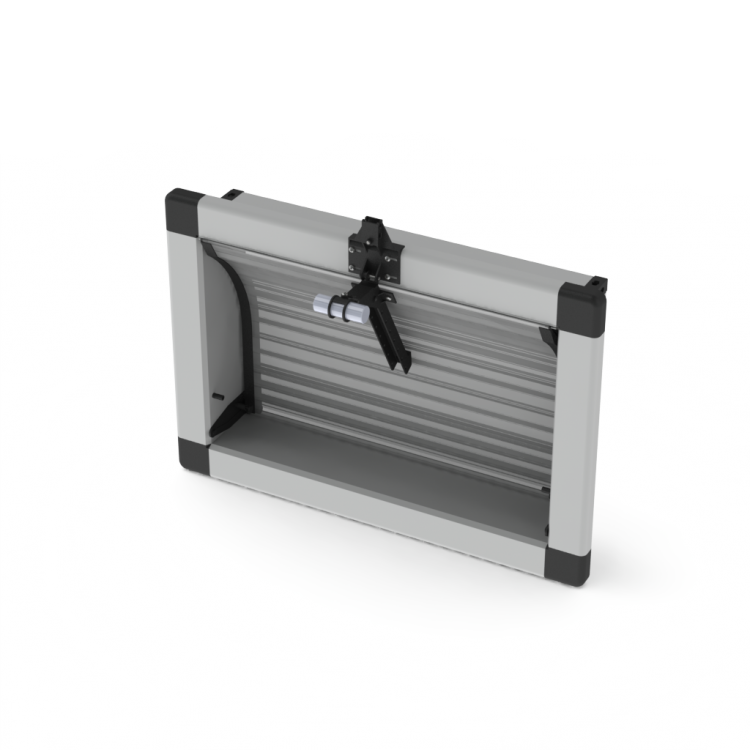

Transparent flap

Windventiel Uniflex Teleflens

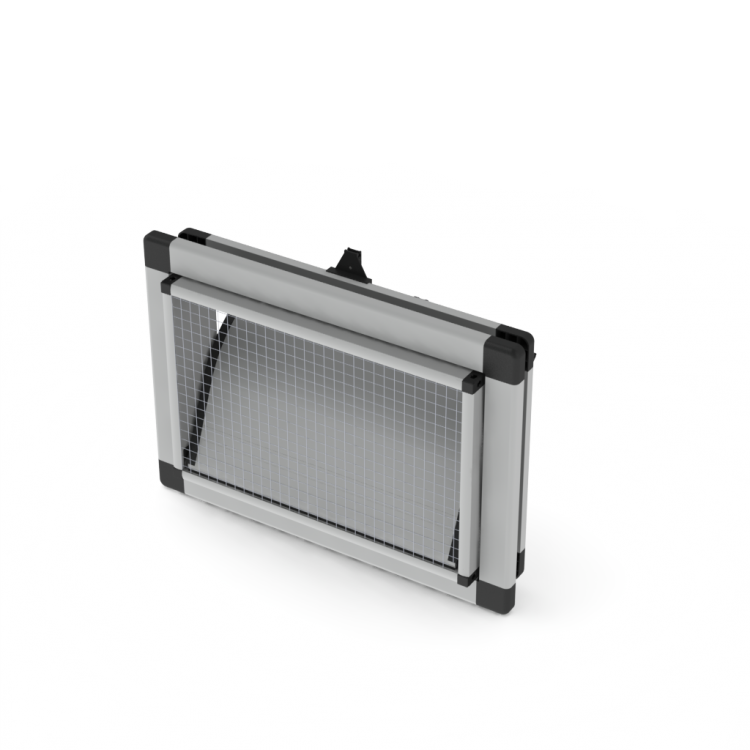

Telescopic flange

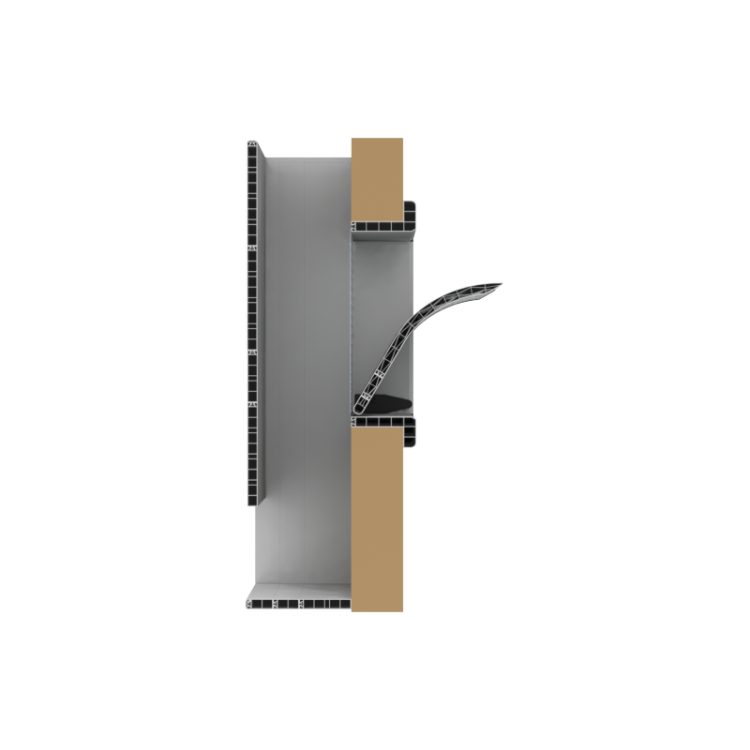

Windventiel Uniflex Windbreekkap

Wind hood

Lichtfilter

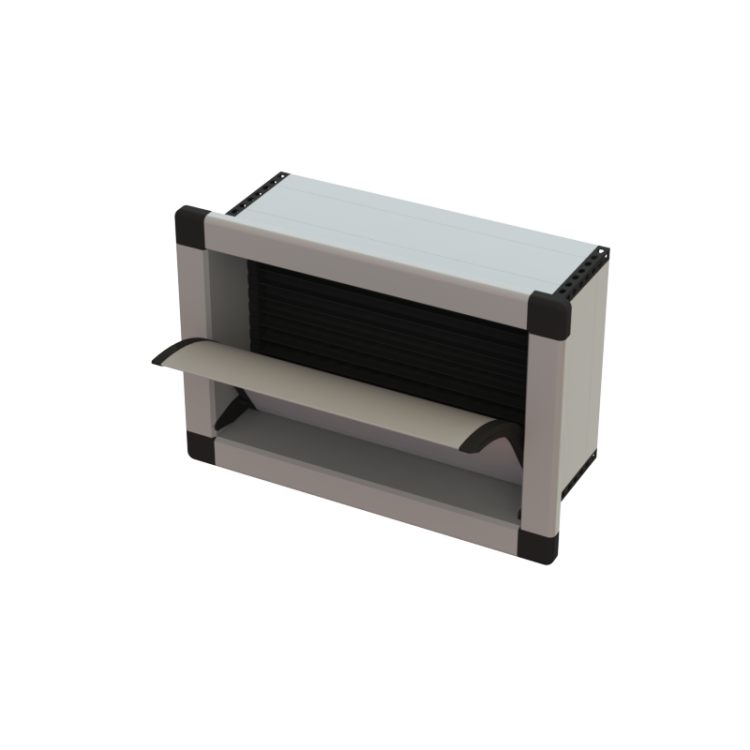

Light trap

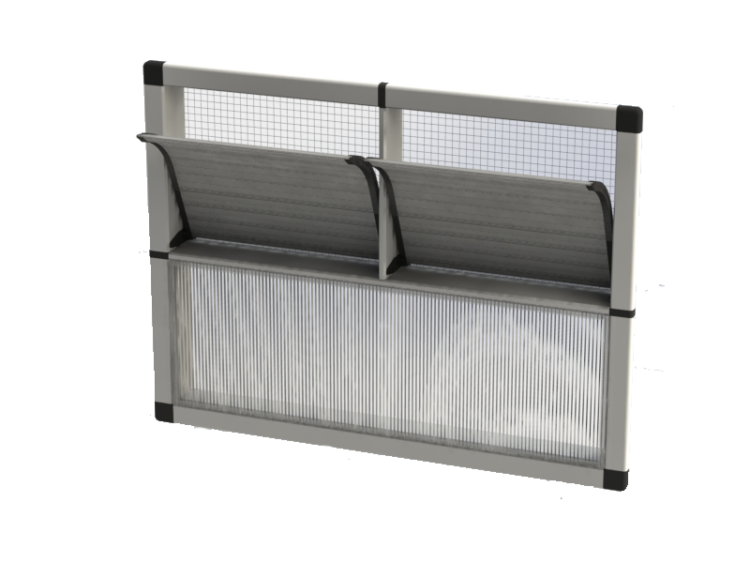

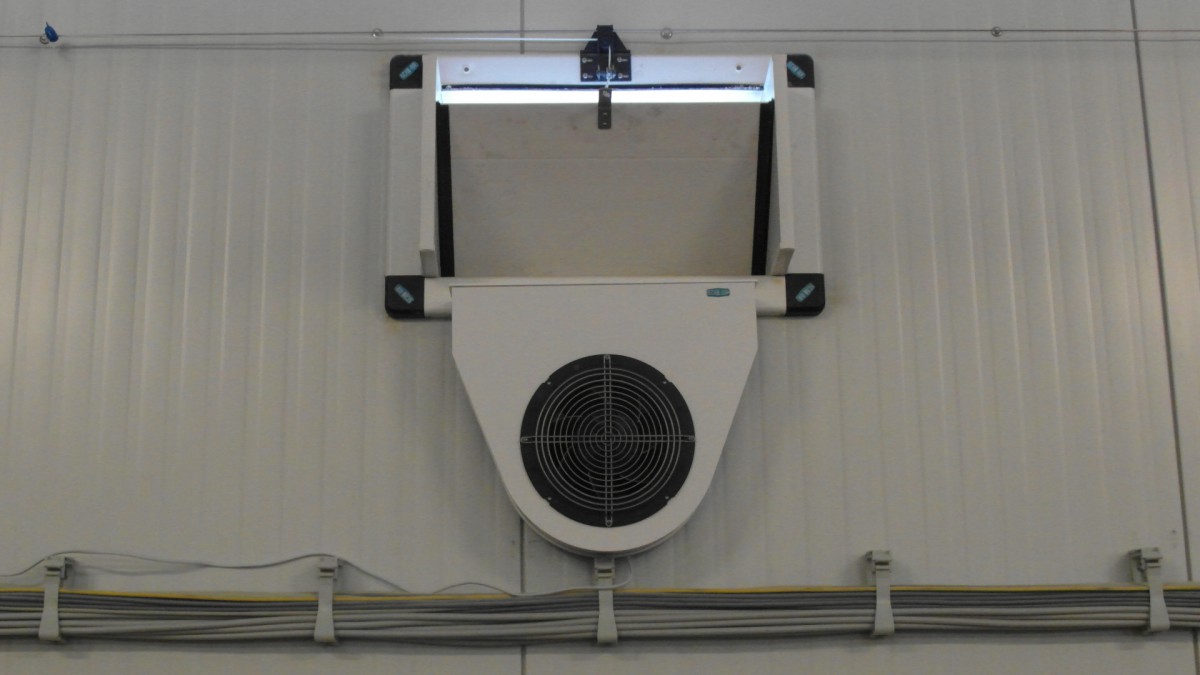

Integrated in daylight system

Available dimensions

Width 200-1120 mm In steps of 1 mm
Height 345-545 mm 345/370/395/445/495/545 mm
Depth 100-500 mm In steps of 25 mm

Online product configurator

Go to our online product configurator for all available models

Configure product (Exclusively for dealers)

Common models

Type Installation dimensions Net surface Capacity Pull force Stroke length
W H D 10 Pa 20 Pa 30 Pa
GDK-2500 540 mm 345 mm 100 mm 1525 cm2 1800 (m3/hr) 2500 (m3/hr) 2900 (m3/hr) 1,3 kg 520 mm
GDK-3500 640 mm 395 mm 100 mm 2130 cm2 2550 (m3/hr) 3500 (m3/hr) 4050 (m3/hr) 1,5 kg 580 mm
GDK-5350 840 mm 445 mm 100 mm 3240 cm2 3900 (m3/hr) 5350 (m3/hr) 6150 (m3/hr) 2 kg 650 mm
GDK-7500 1040 mm 495 mm 100 mm 4550 cm2 5450 (m3/hr) 7500 (m3/hr) 8650 (m3/hr) 2,2 kg 720 mm
GDK-9000 1120 mm 545 mm 100 mm 5454 cm2 6550 (m3/hr) 9000 (m3/hr) 10350 (m3/hr) 2,5 kg 790 mm
