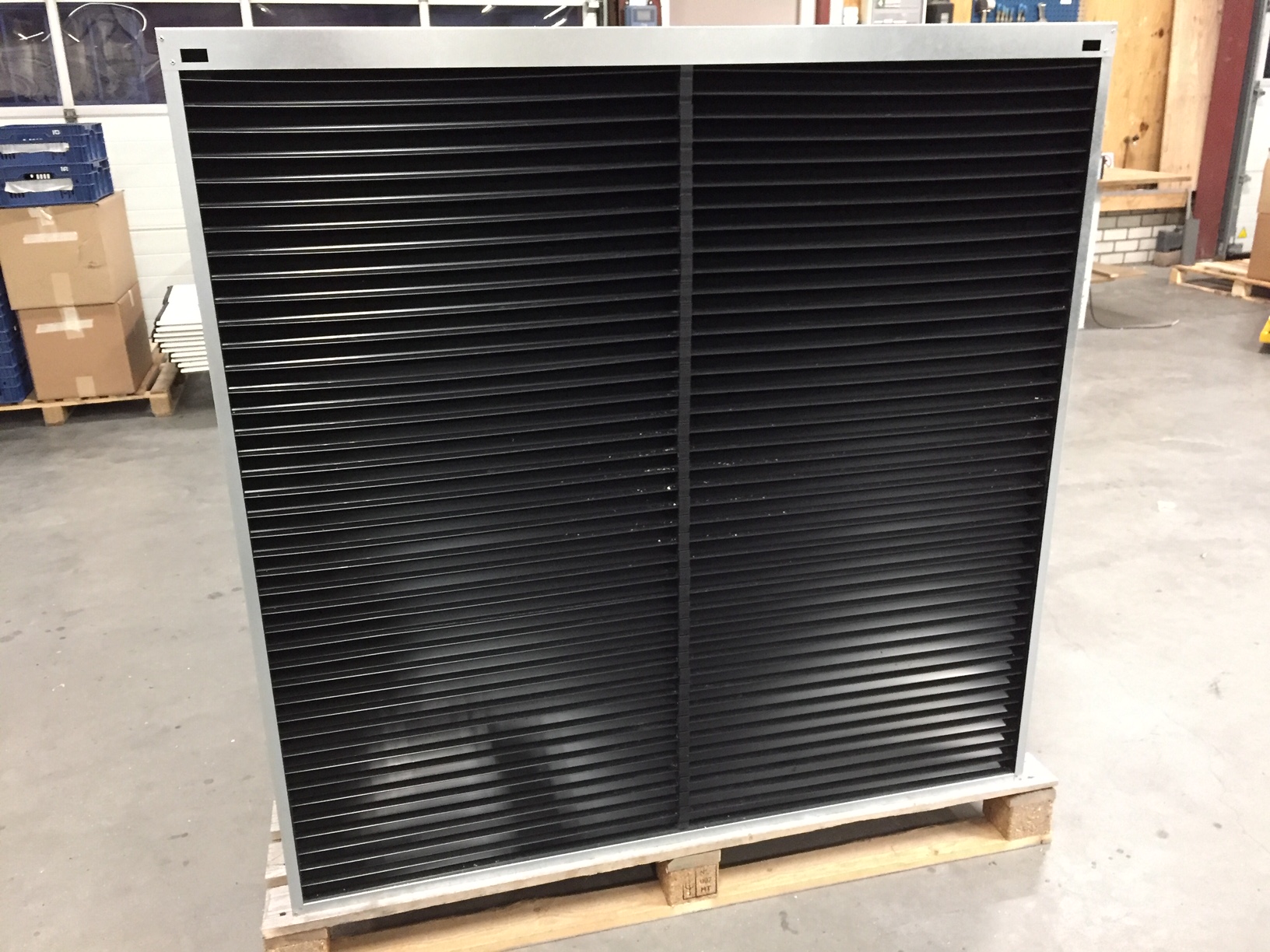

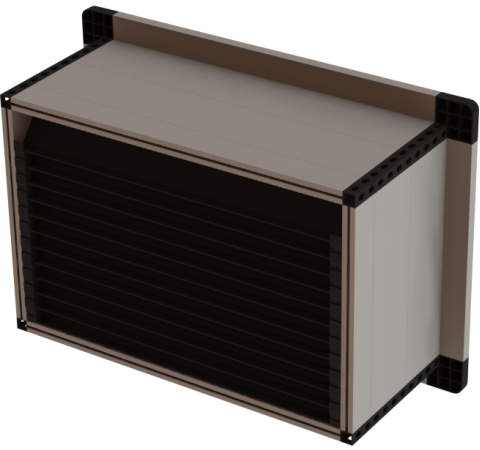

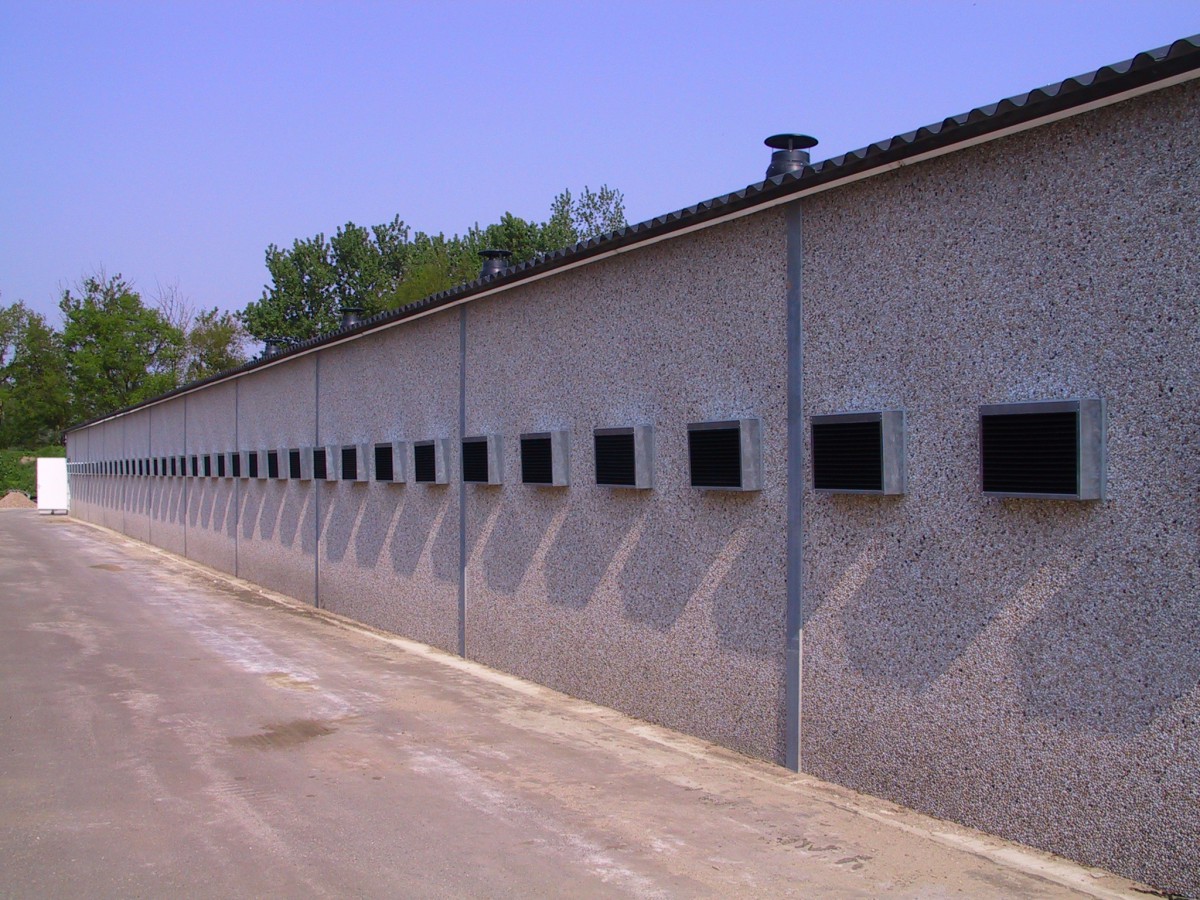

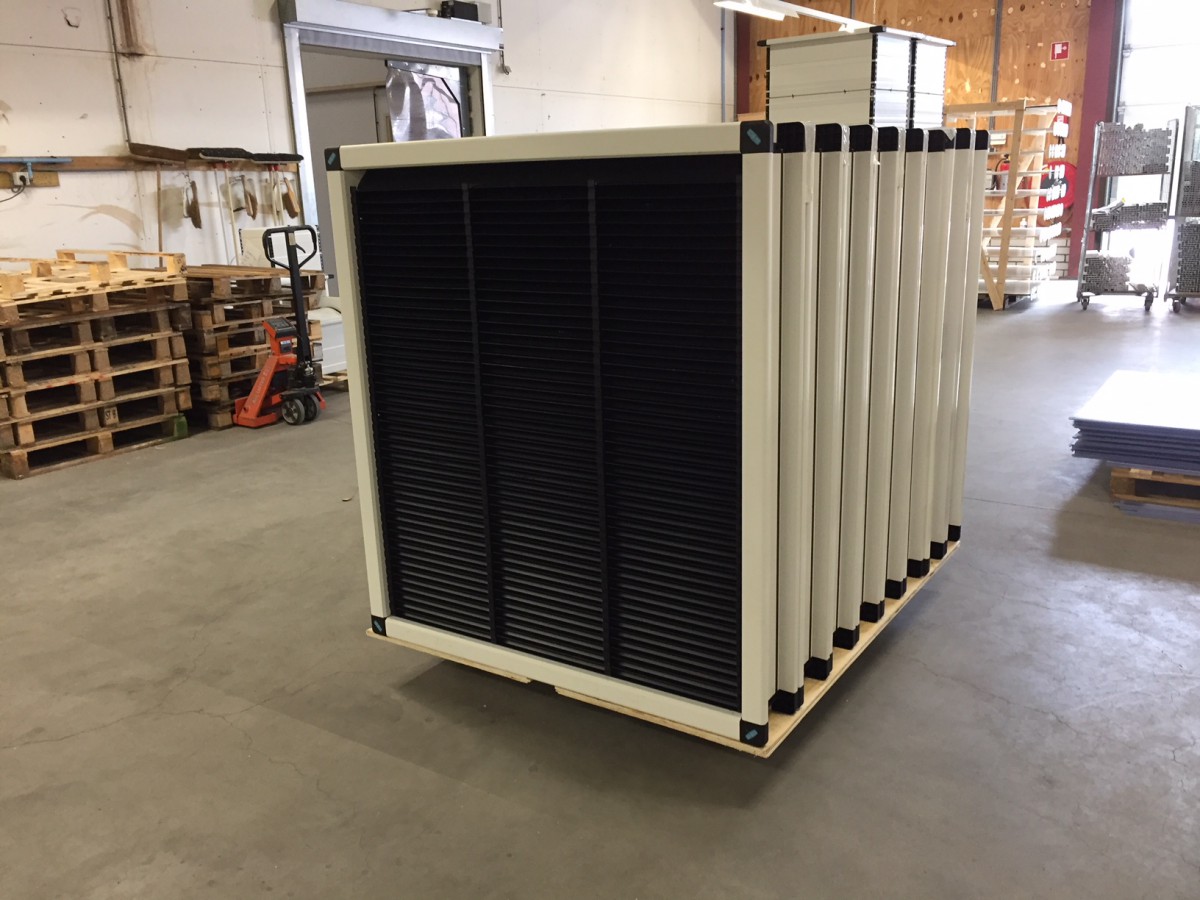

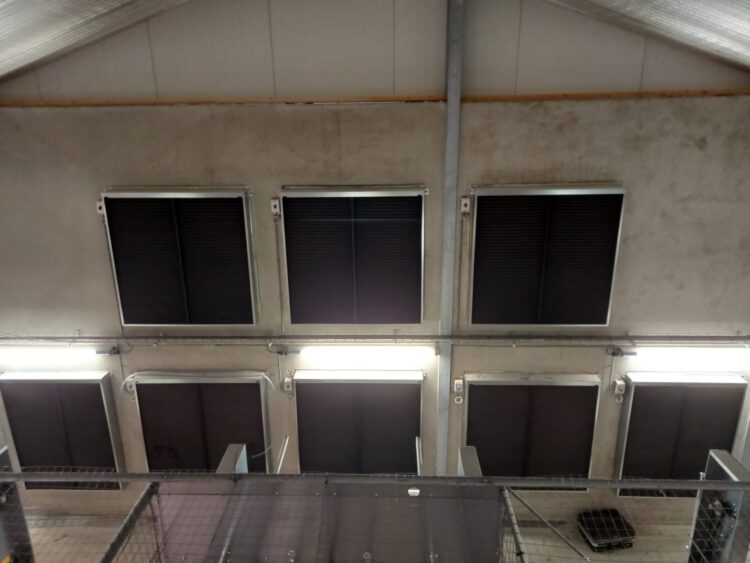

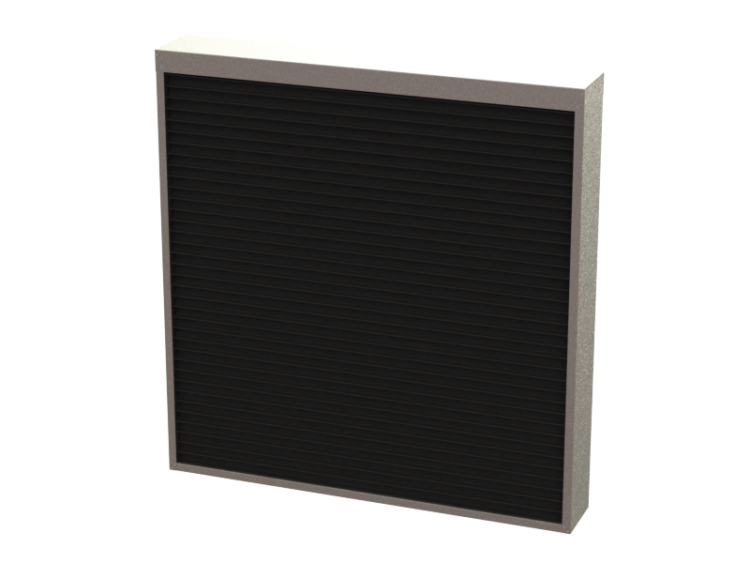

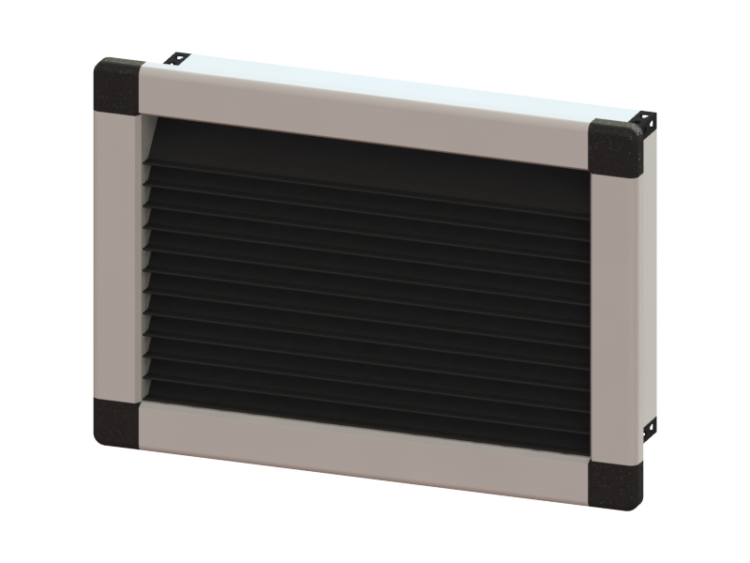

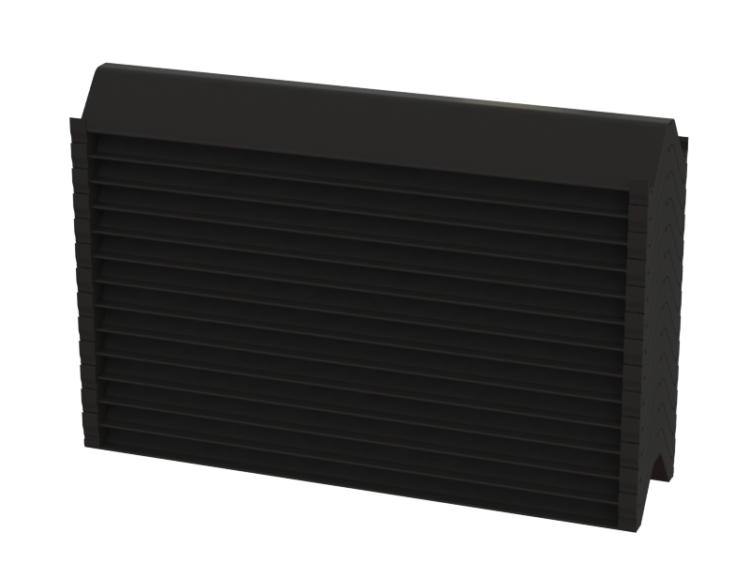

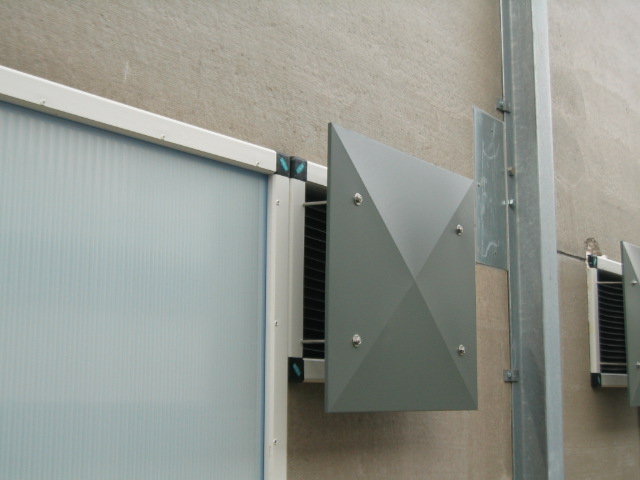

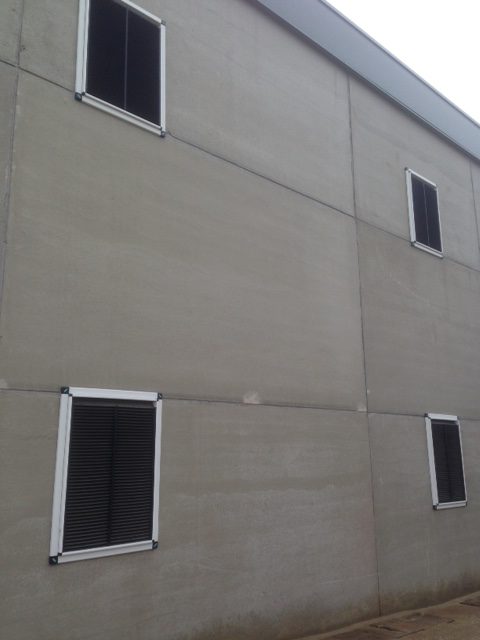

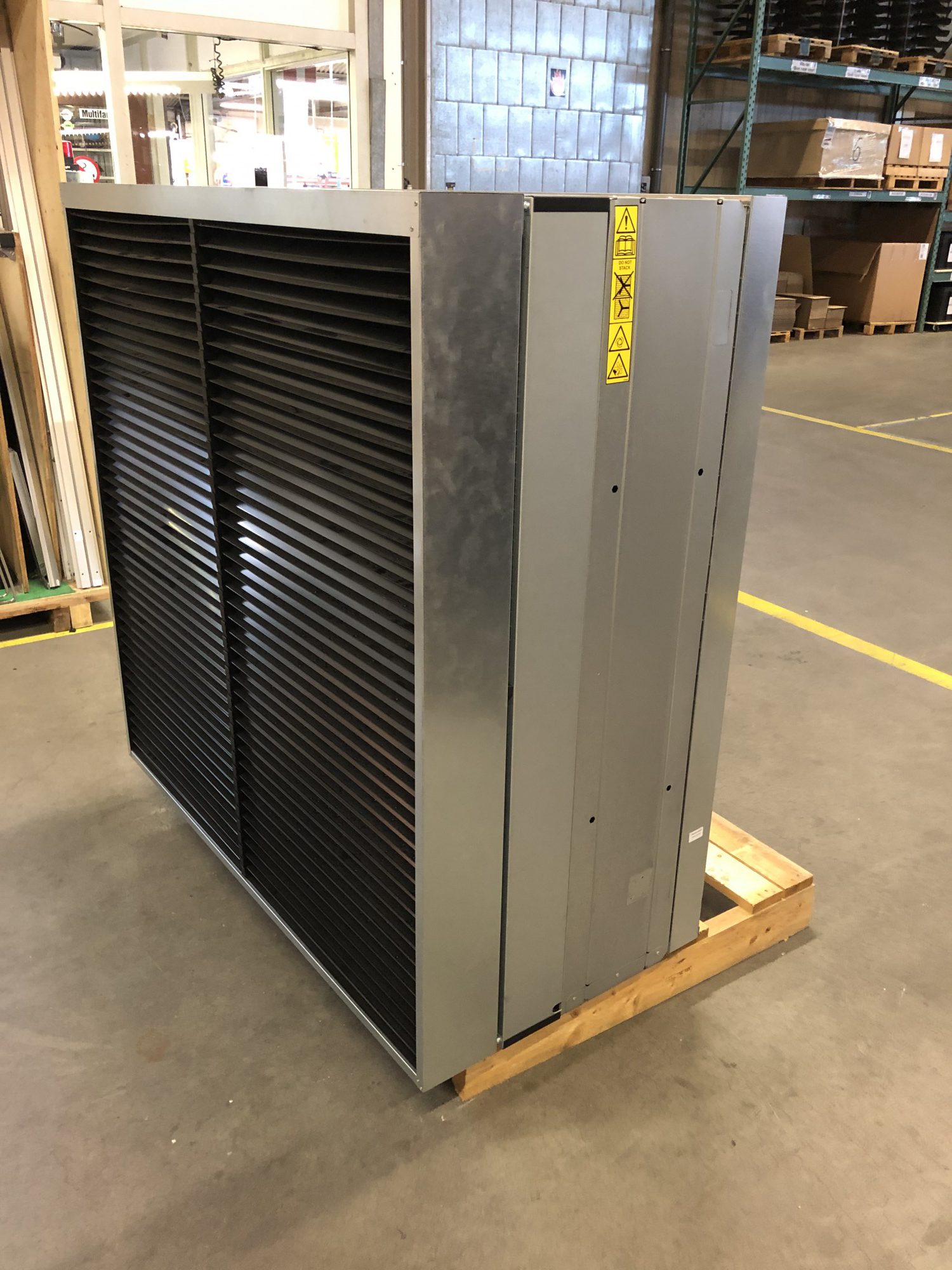

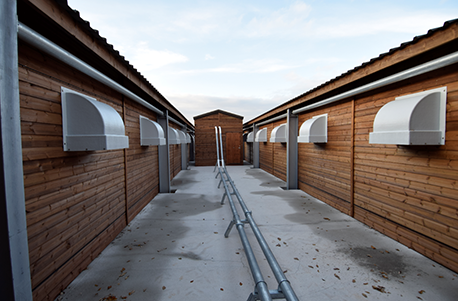

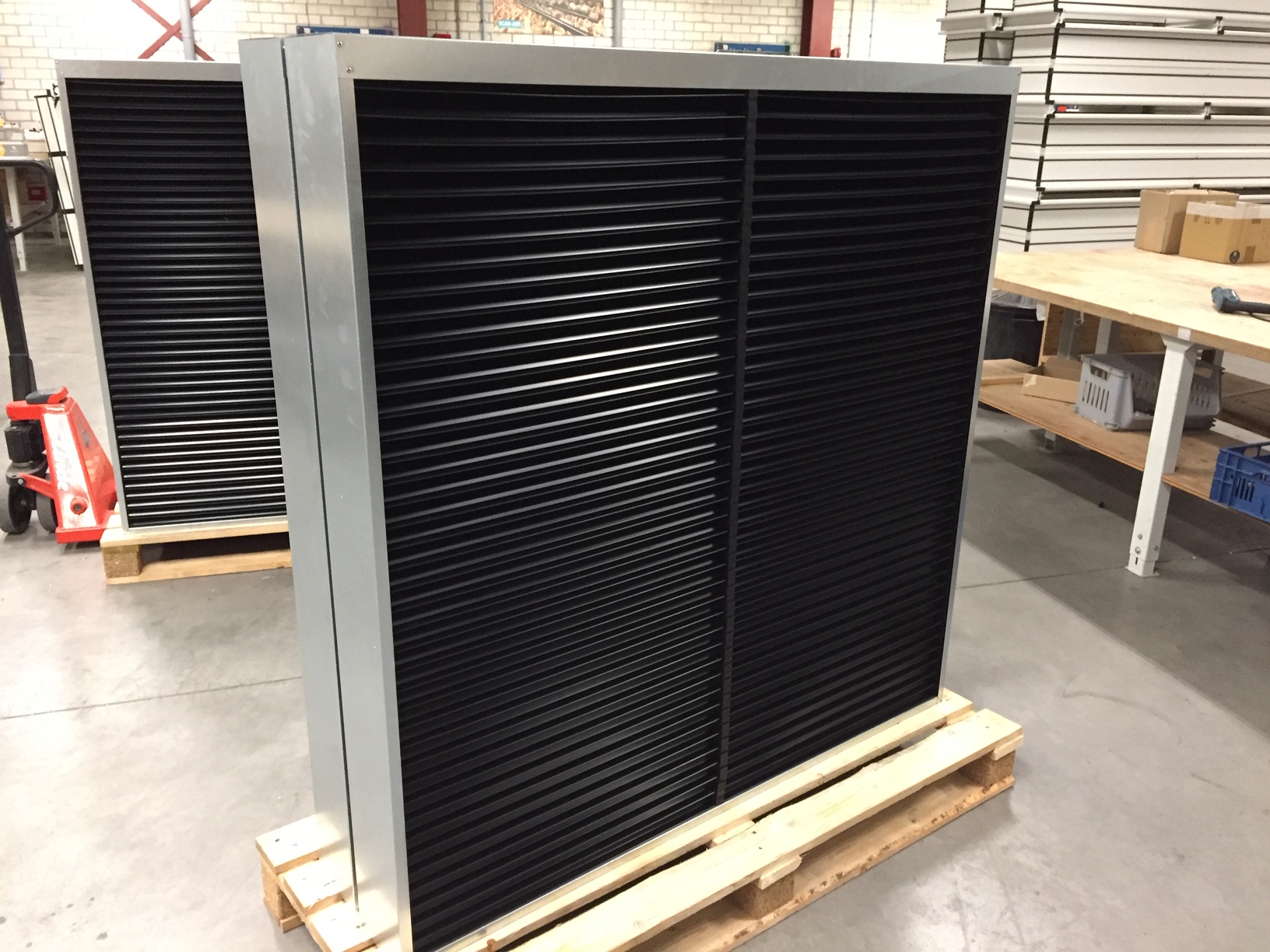

Light traps
| Width | 200-2000 mm | In steps of 1 mm |
|---|---|---|
| Height | 200-2000 mm | In steps of 1 mm |
| Depth | 155 or 150-500 mm | In steps of 25 mm |
| Diameter for chimney | 645-920 mm | ø645/ø730/ø820/ø920 mm |
Go to our online product configurator for all available models
| Type | Installation dimensions | Diameter for chimney | ||
|---|---|---|---|---|
| W | H | D | Ø | |

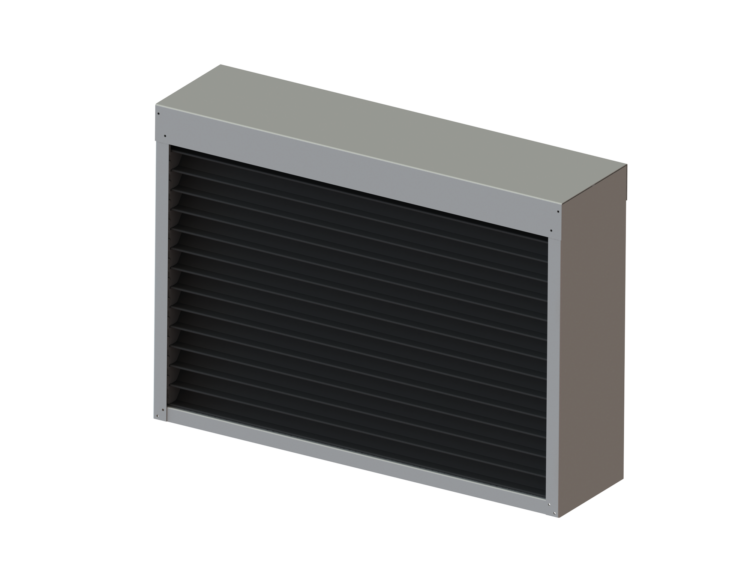

| LTR-2500 | 540 mm | 345 mm | 150 mm | - |
| LTR-3500 | 640 mm | 395 mm | 150 mm | - |
| LTR-5350 | 840 mm | 445 mm | 150 mm | - |
| LTR-5450 | 1120 mm | 345 mm | 150 mm | - |
| LTR-7500 | 1040 mm | 495 mm | 150 mm | - |
| LTR-VERZ-2500 | 540 mm | 375 mm | 155 mm | - |
| LTR-VERZ-3500 | 640 mm | 425 mm | 155 mm | - |
| LTR-VERZ-5350 | 840 mm | 475 mm | 155 mm | - |
| LTR-VERZ-5450 | 1120 mm | 375 mm | 155 mm | - |
| LTR-VERZ-7500 | 1040 mm | 525 mm | 155 mm | - |
| LTR-VERZ-92 | 1005 mm | 1005 mm | 155 mm | - |
| LTR-VERZ-130 | 1382 mm | 1382 mm | 155 mm | - |
| LTR-VERZ-140 | 1480 mm | 1480 mm | 155 mm | - |

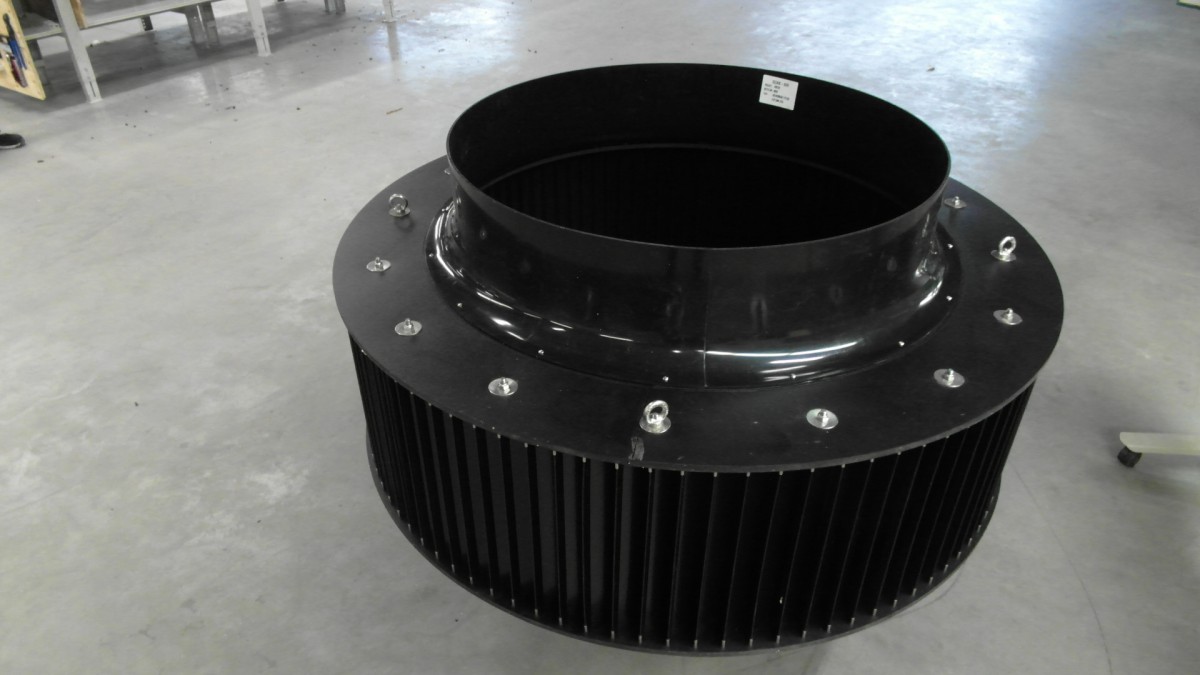

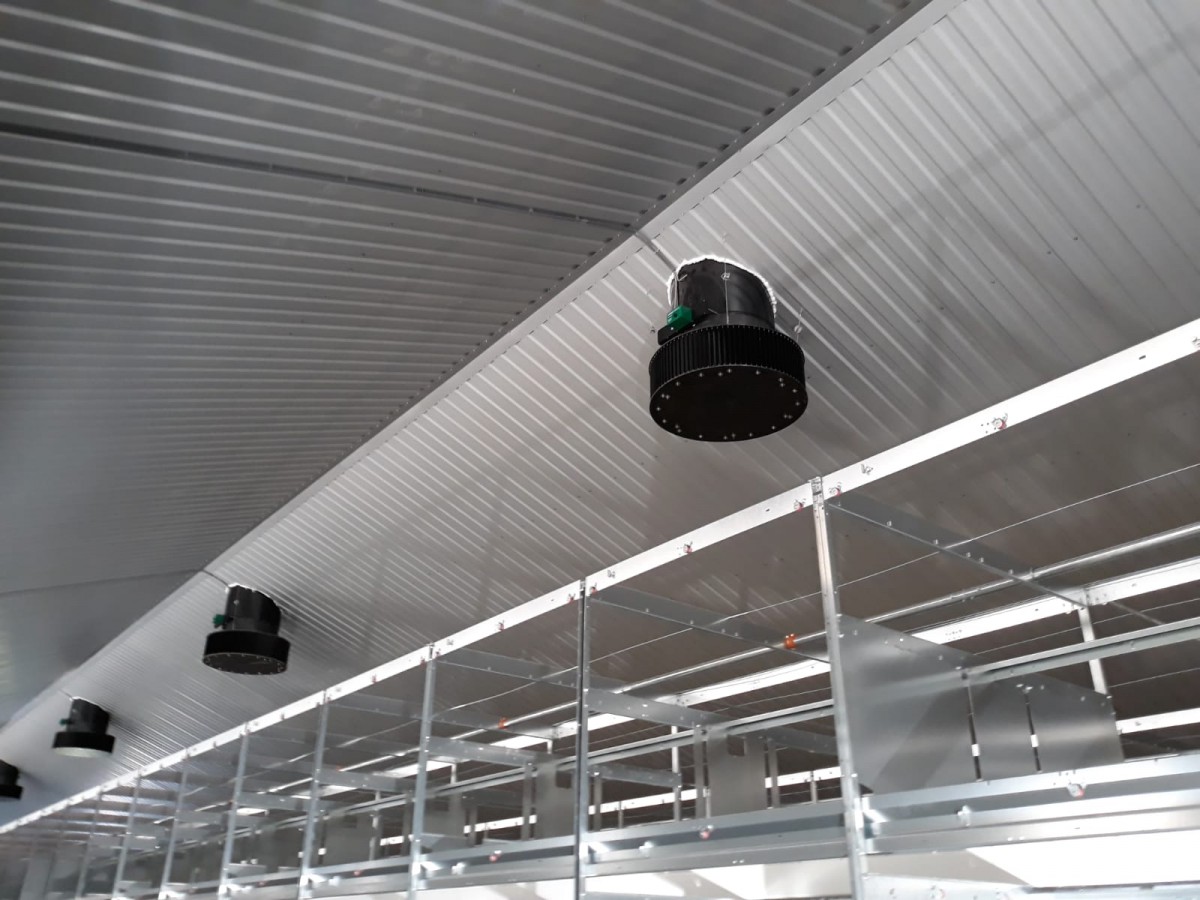

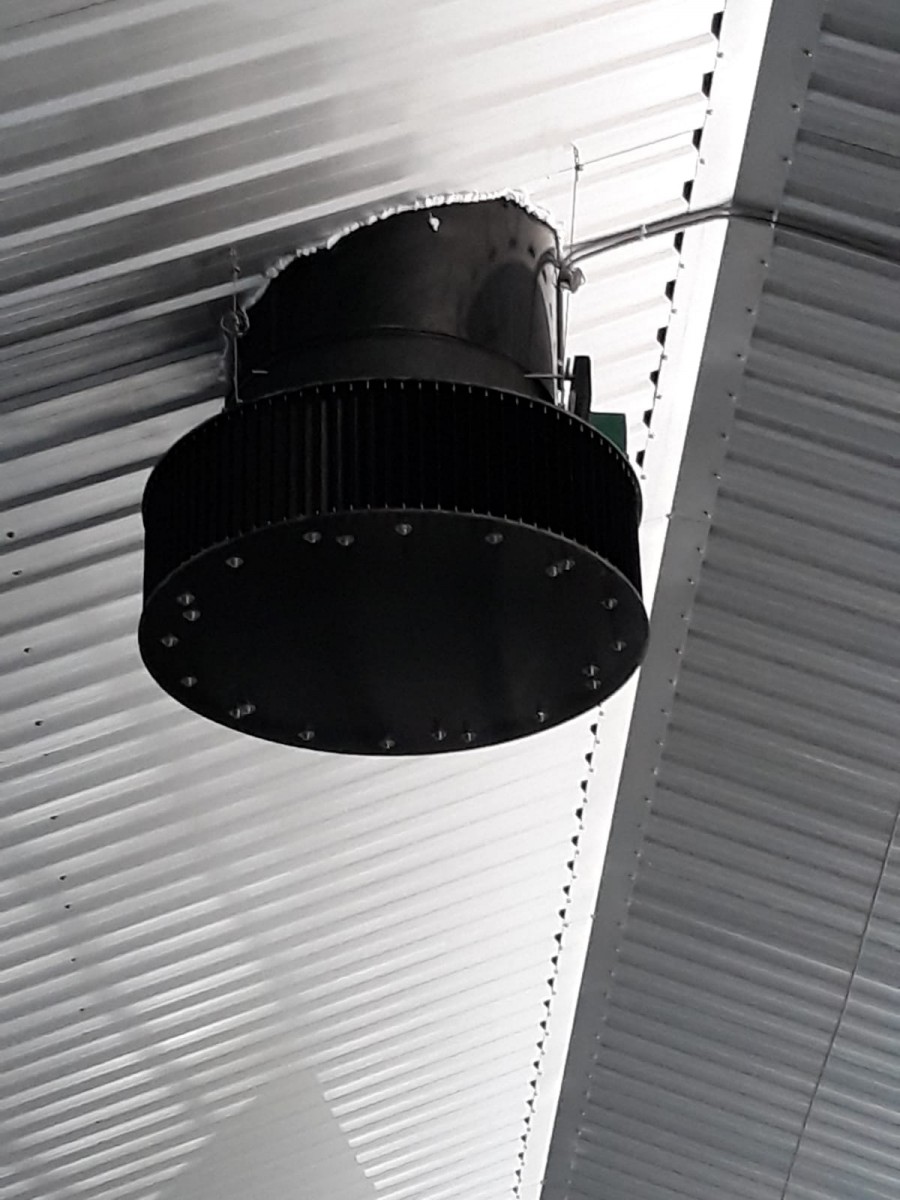

| LTR-K-645 | - | - | - | 645 mm |
| LTR-K-730 | - | - | - | 730 mm |
| LTR-K-820 | - | - | - | 820 mm |
| LTR-K-920 | - | - | - | 920 mm |
