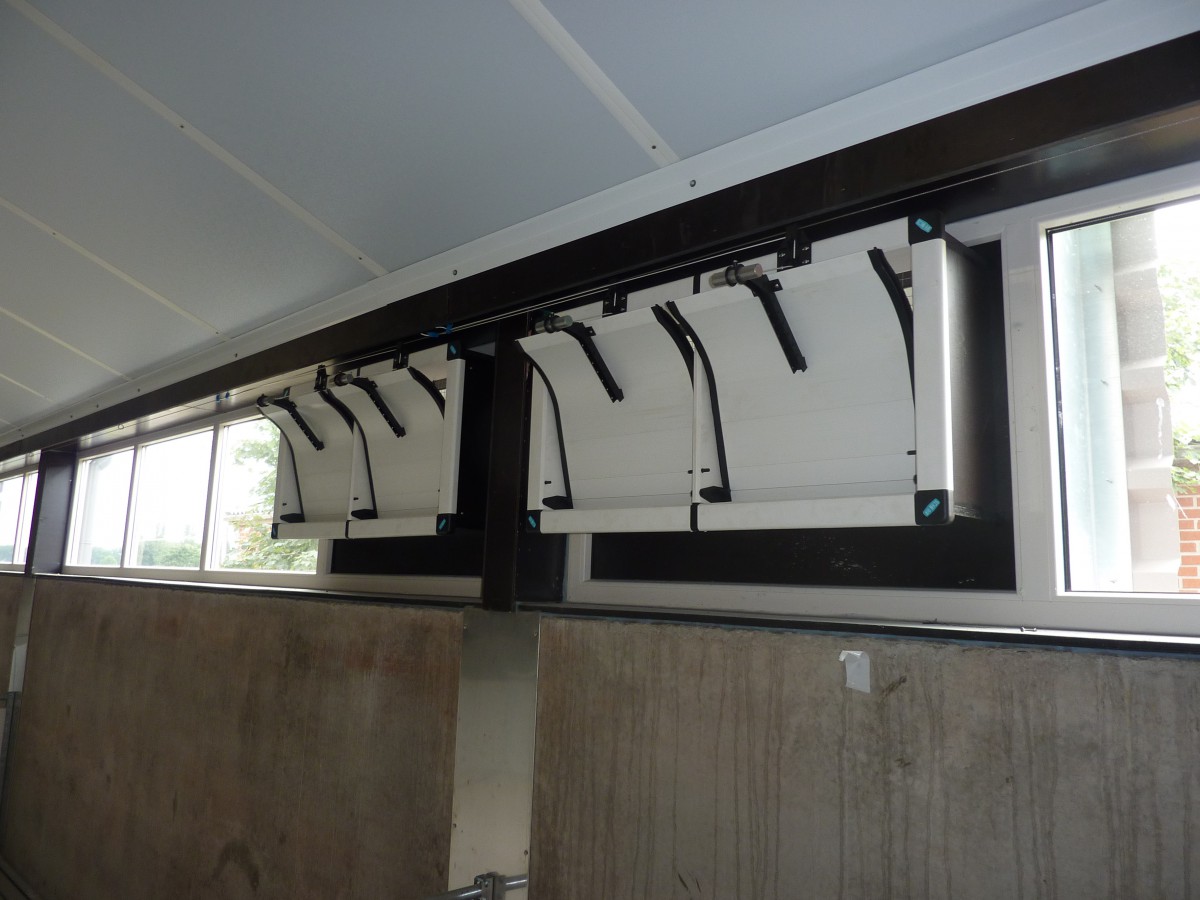

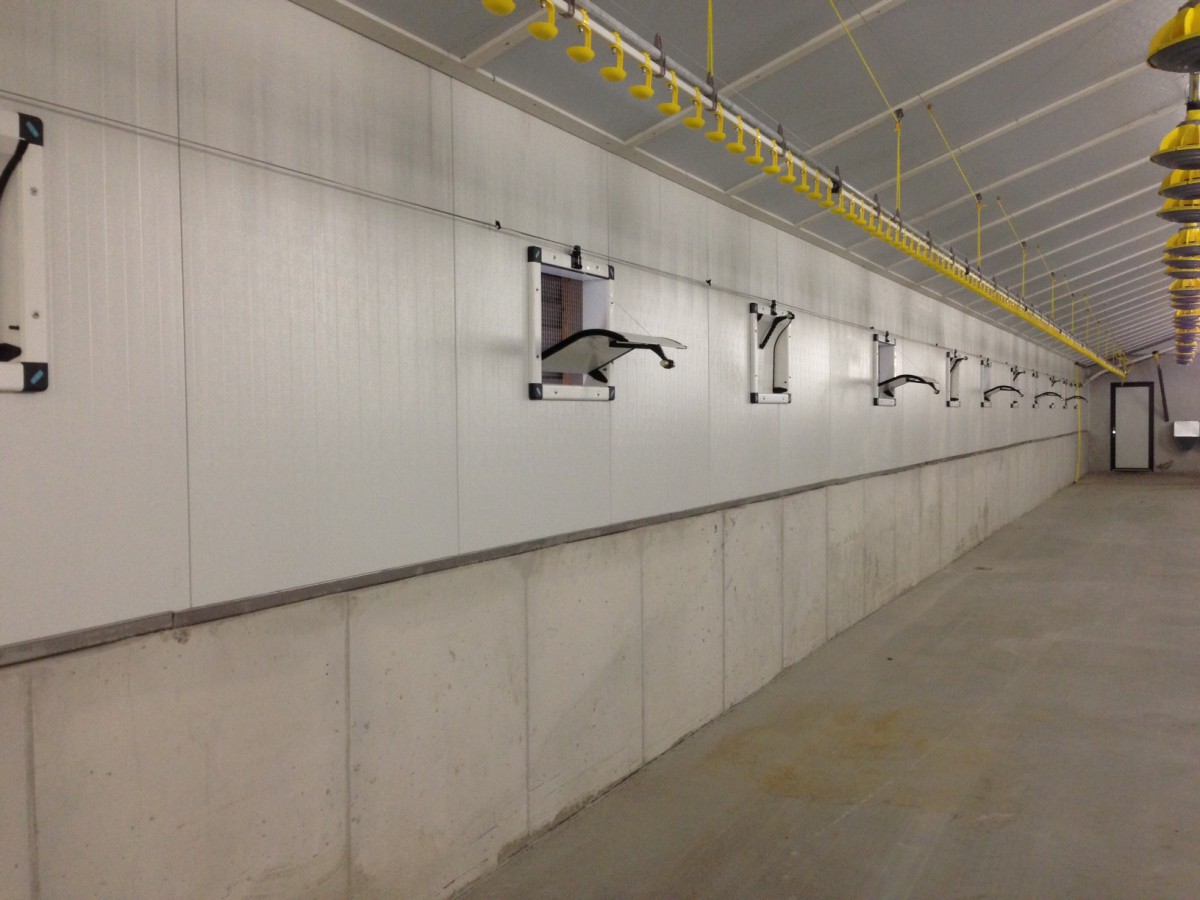

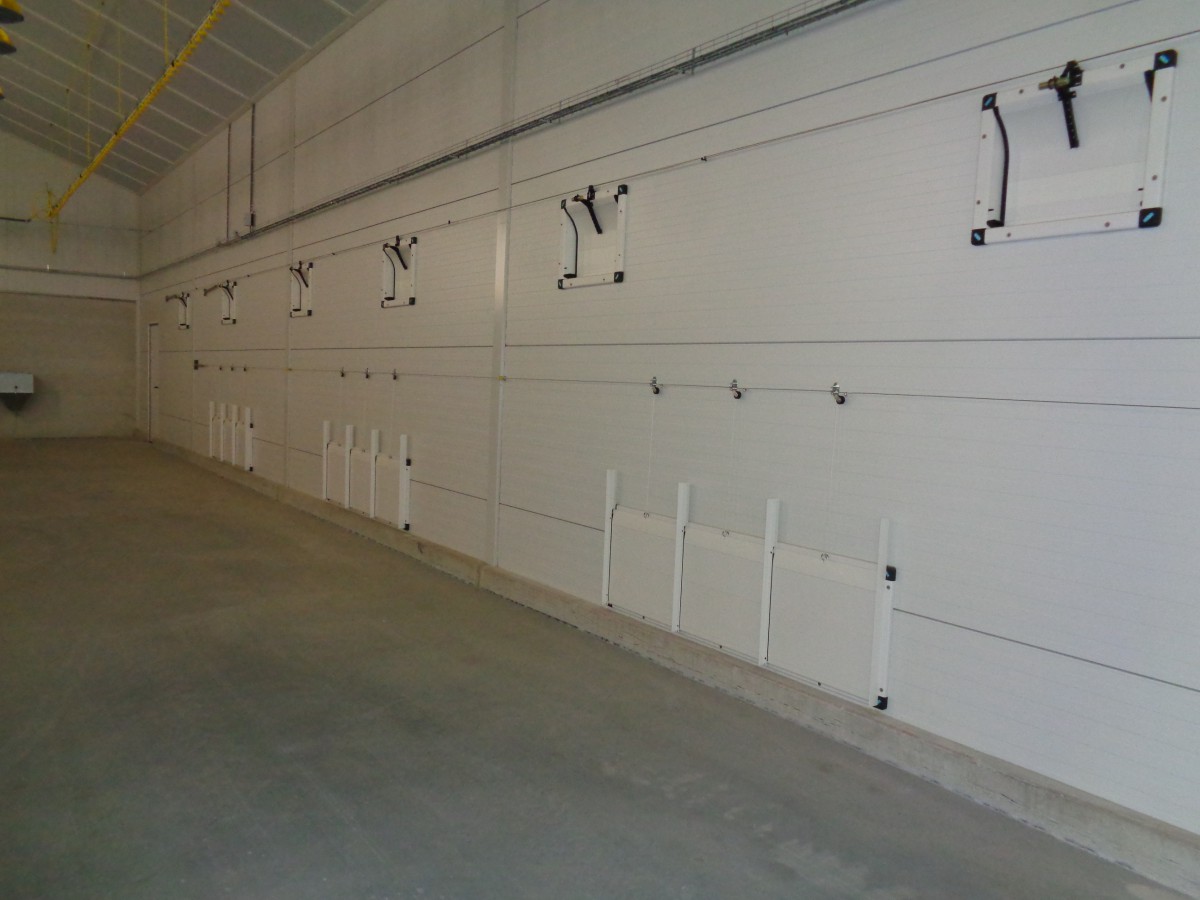

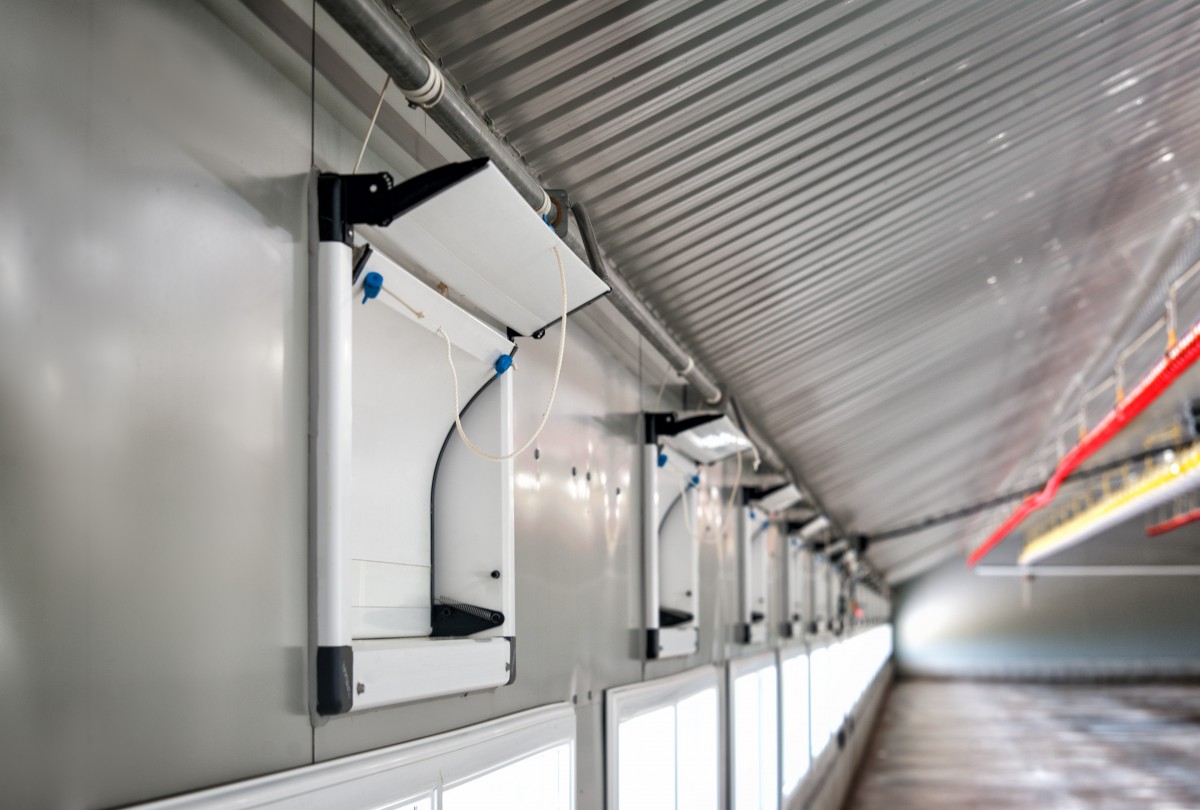

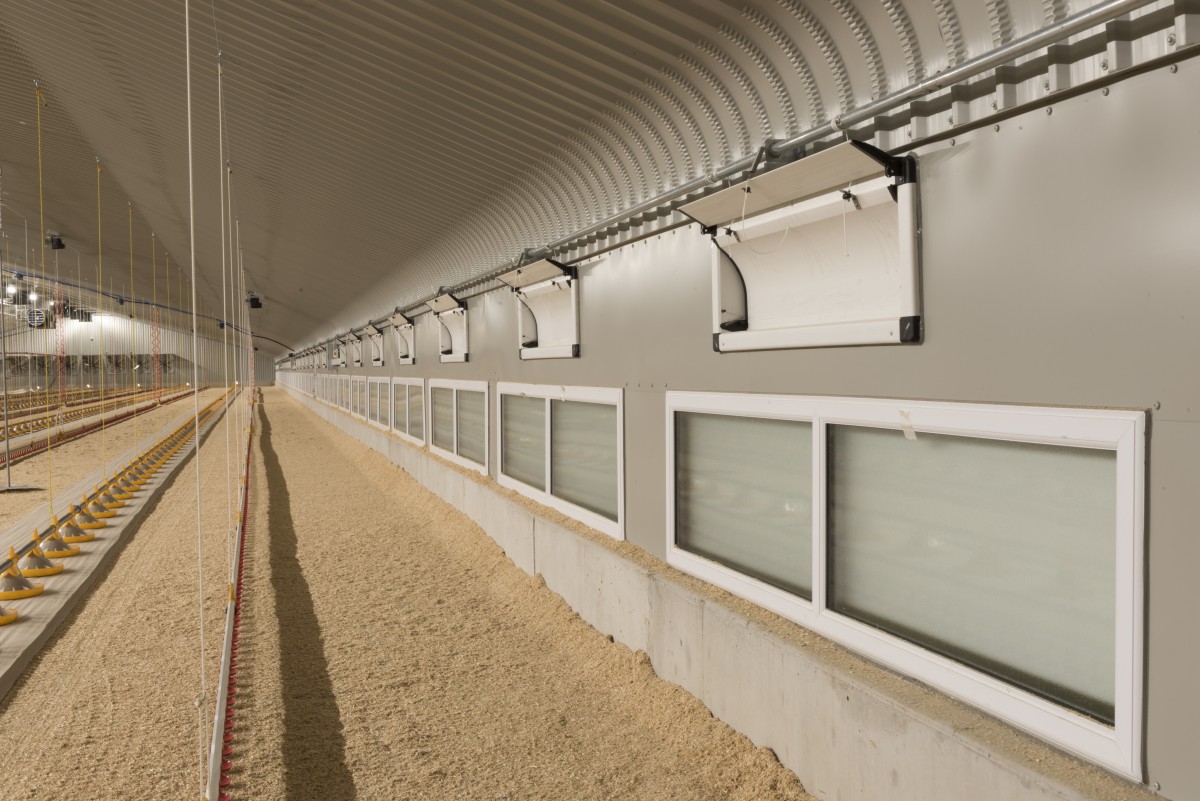

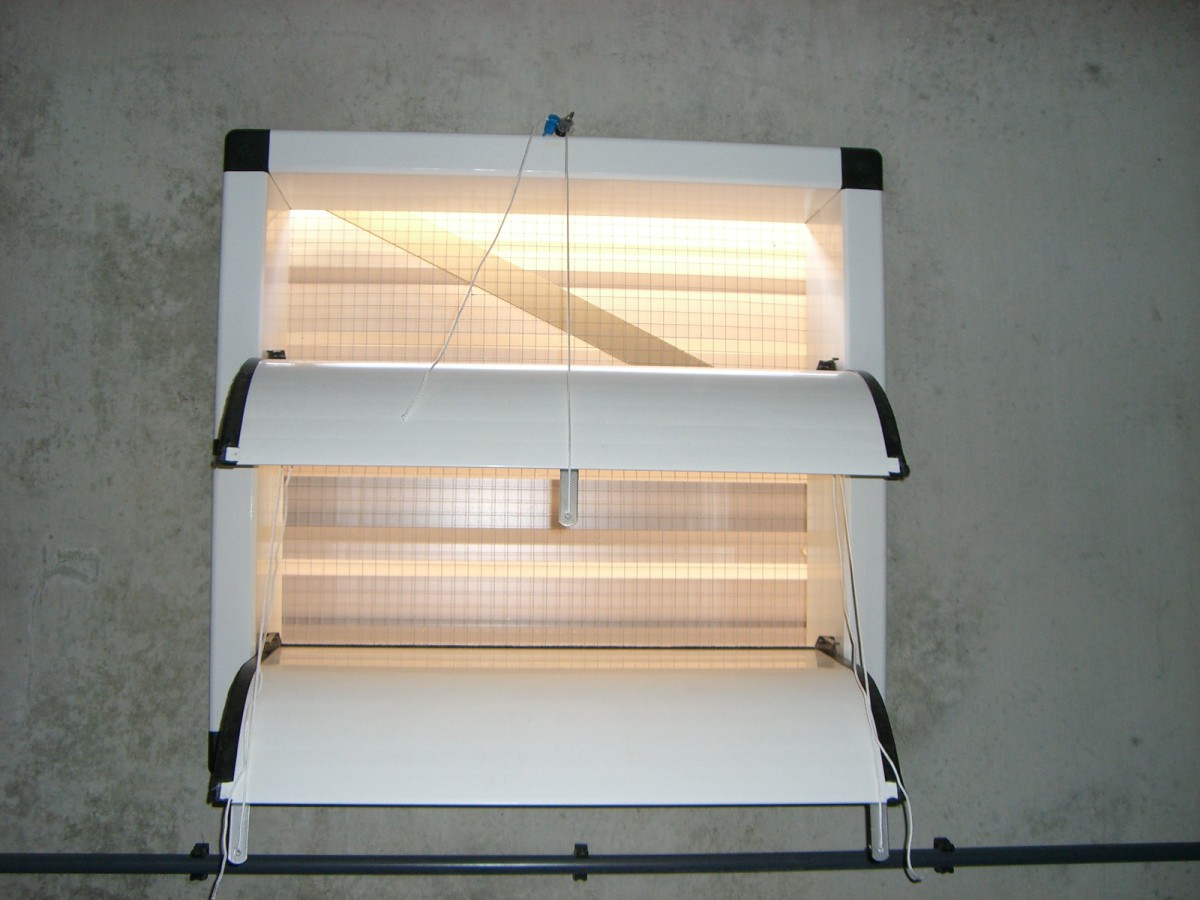

Benefits of Wall Inlet Curved Flap Double Turning Point GKK

Curved flap with center hinge

Optimal air control due to curved flap

Self-opening

Insulated flap

Options

Meervoudige kleppen met gebogen klep

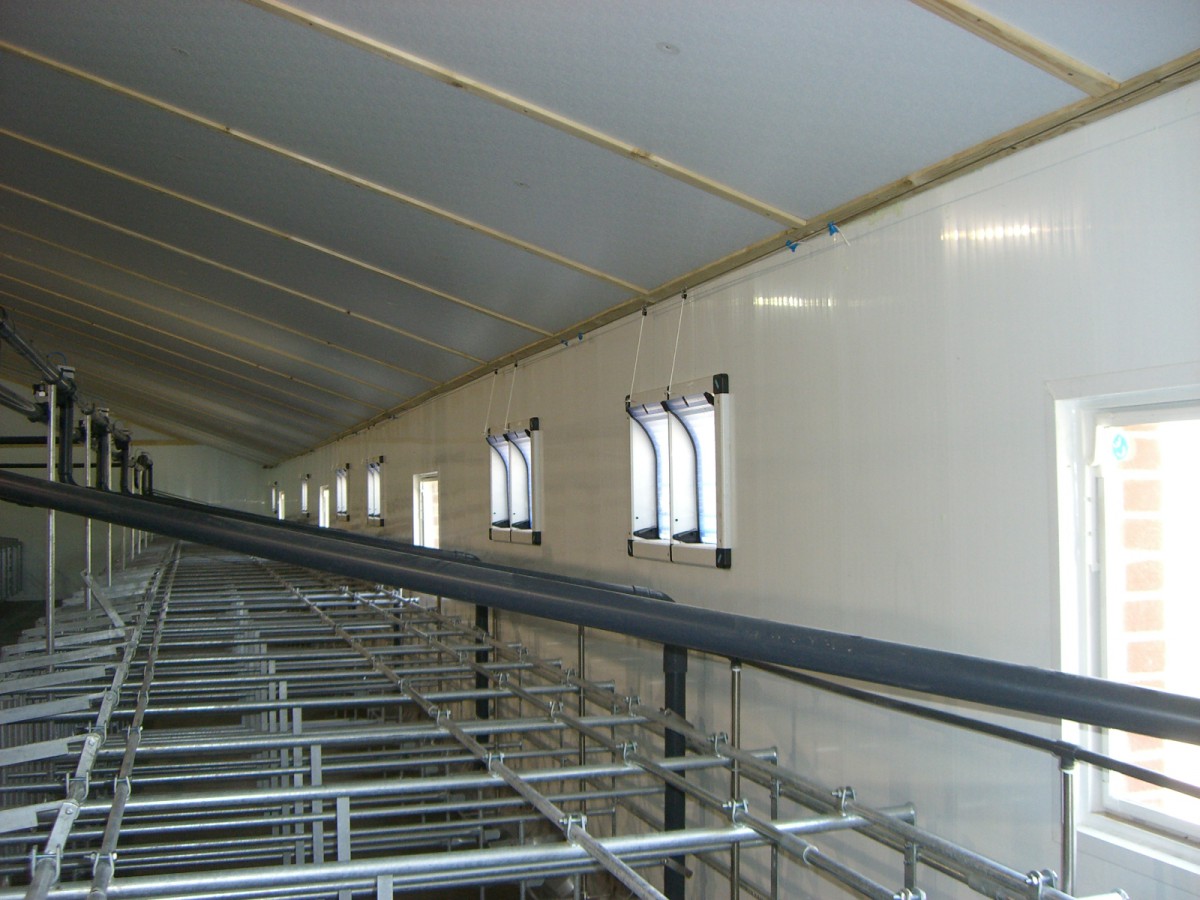

Multiple

Ongeassembleerd

Unassembled

Spoiler 125mm

Deflector 125mm

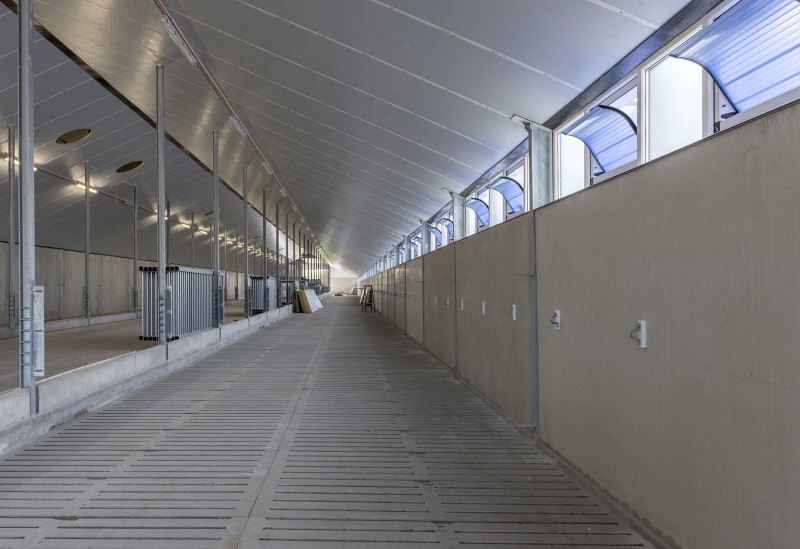

Transparante klep

Transparent flap

Windventiel Uniflex Teleflens

Telescopic flange

Windventiel Uniflex Windbreekkap

Wind hood

Lichtfilter

Light trap

Integrated in daylight system

Available dimensions

Width 200-1120 mm In steps of 1 mm
Height 345-545 mm 345/370/395/445/495/545 mm
Depth 100-500 mm In steps of 25 mm

Online product configurator

Go to our online product configurator for all available models

Configure product (Exclusively for dealers)

Common models

Type Installation dimensions Net surface Capacity Pull force Stroke length
W H D 10 Pa 20 Pa 30 Pa
GKK-2500 540 mm 345 mm 100 mm 1525 cm2 1900 (m3/hr) 2500 (m3/hr) 3200 (m3/hr) 1,3 kg 460 mm
GKK-3500 640 mm 395 mm 100 mm 2130 cm2 2650 (m3/hr) 3500 (m3/hr) 4450 (m3/hr) 1,5 kg 520 mm
GKK-5350 840 mm 445 mm 100 mm 3240 cm2 4050 (m3/hr) 5350 (m3/hr) 6800 (m3/hr) 2 kg 590 mm
GKK-5450 1120 mm 345 mm 100 mm 3294 cm2 4100 (m3/hr) 5450 (m3/hr) 6900 (m3/hr) 2 kg 460 mm
GKK-7500 1040 mm 495 mm 100 mm 4550 cm2 5700 (m3/hr) 7500 (m3/hr) 9550 (m3/hr) 2,2 kg 660 mm
