Benefits of Intake Chimney ILK

Single or double wall

Complete out of HDPE

Impact resistant

UV-resistant

Compact version (80% volume reduction)

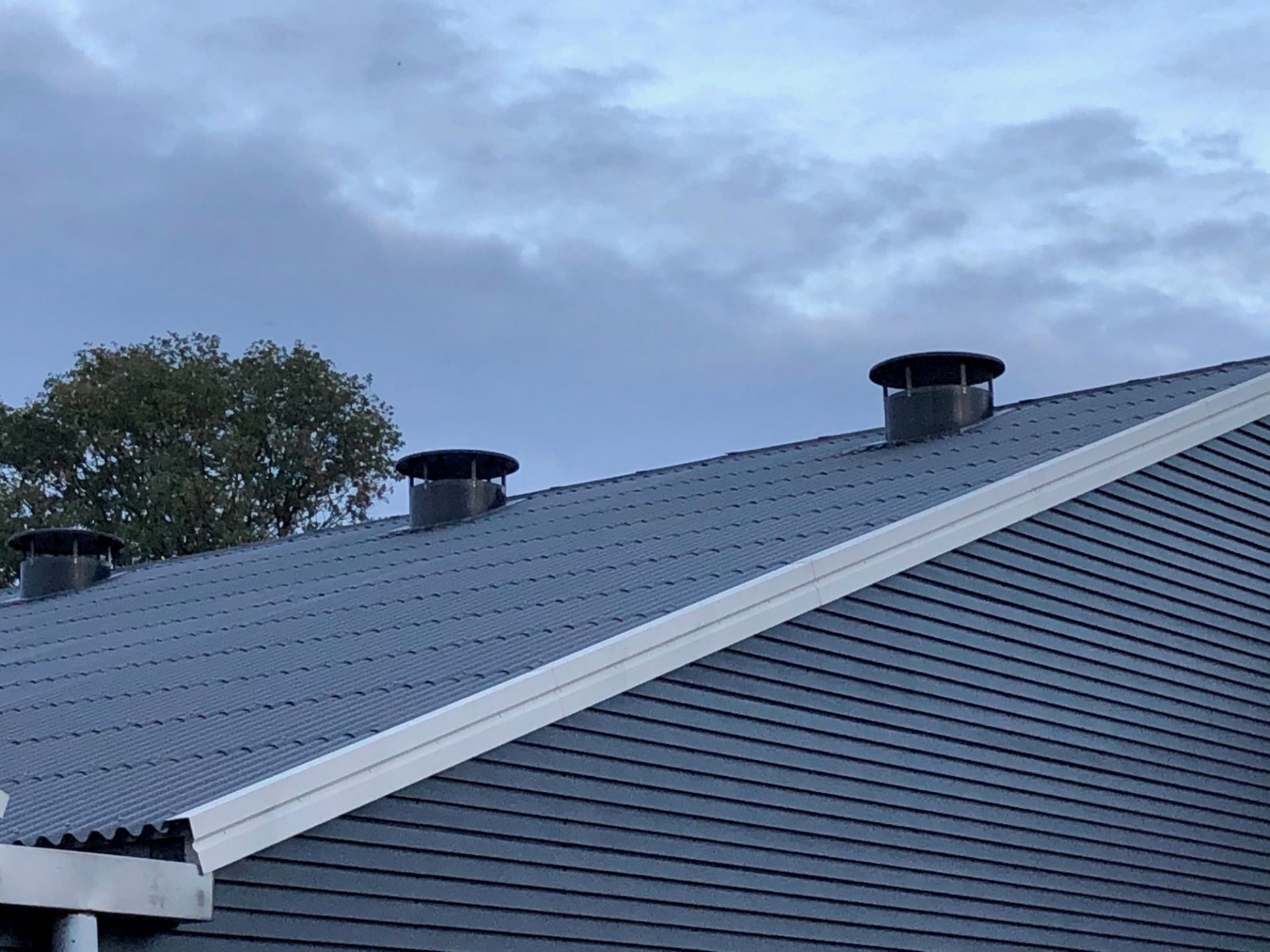

Different roof profiles available

Options

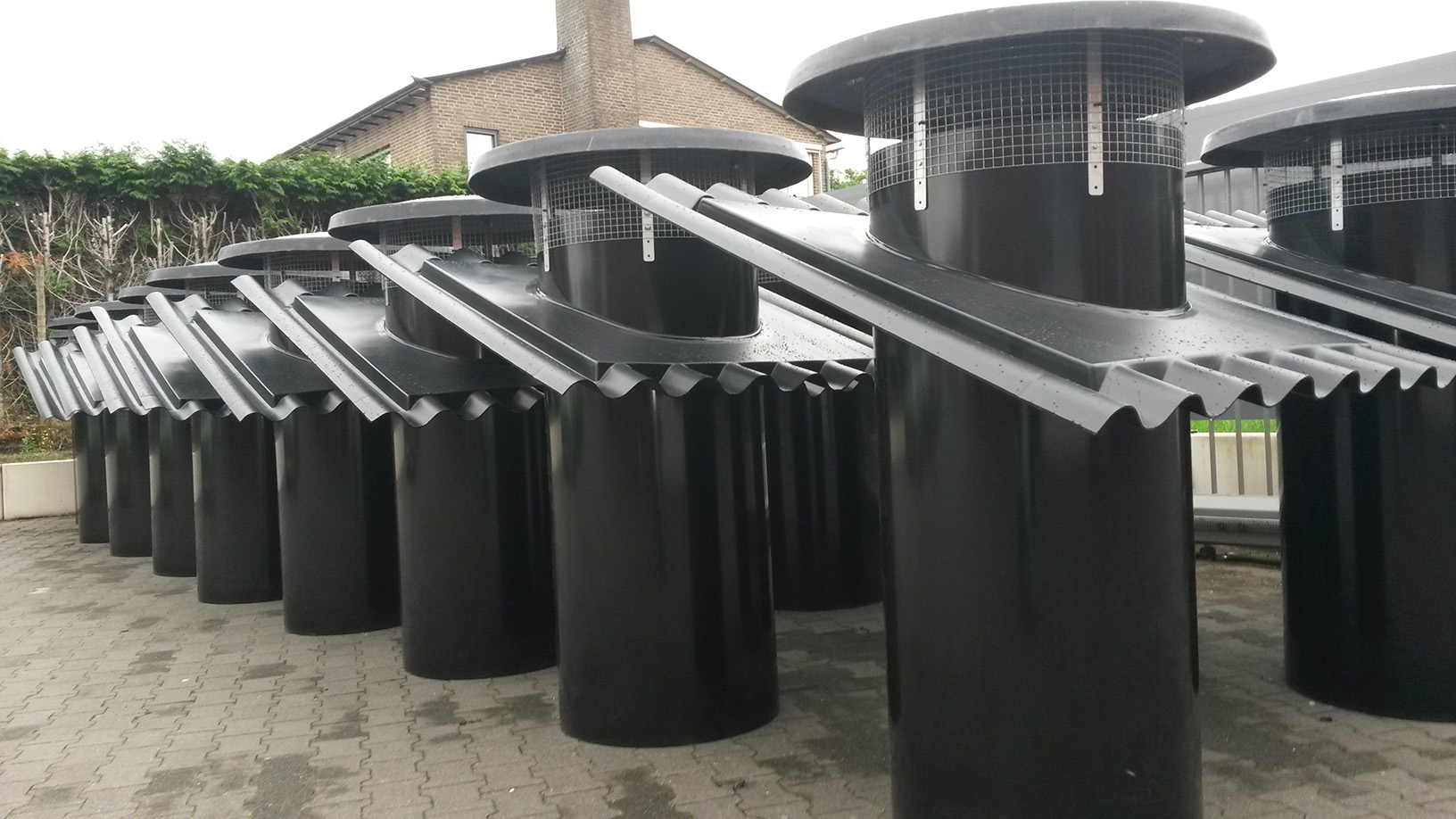

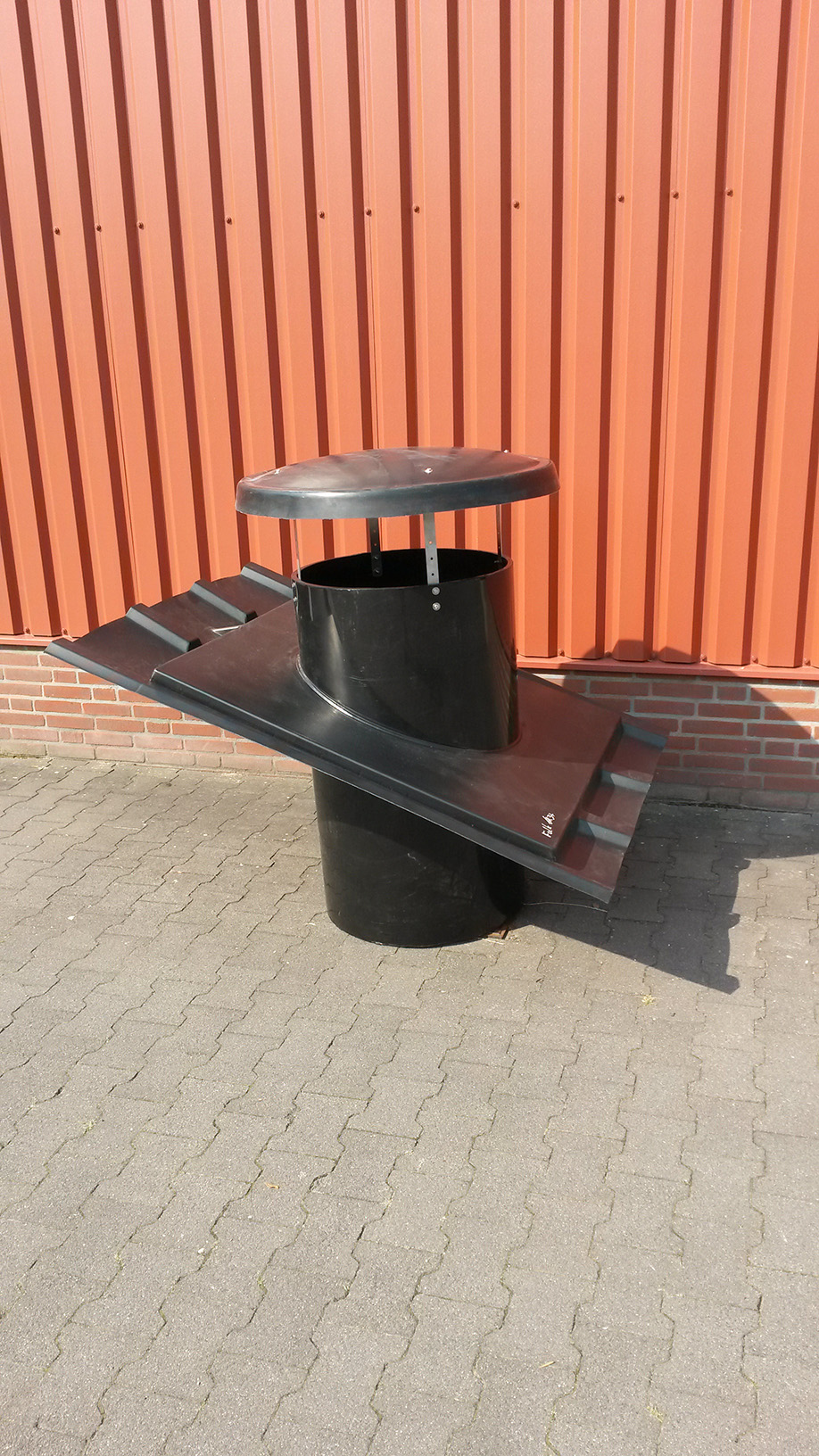

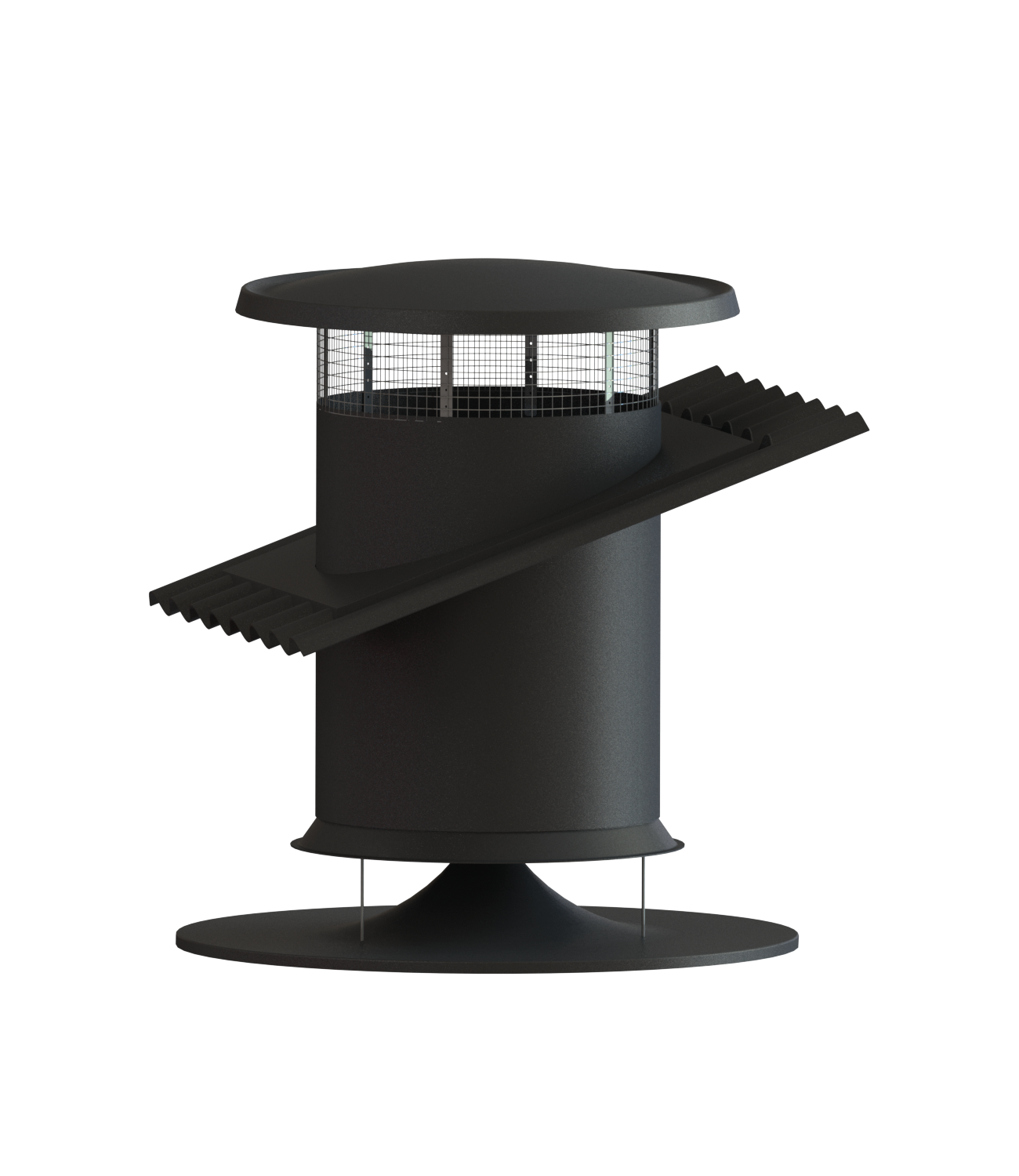

Chimney with rain cap

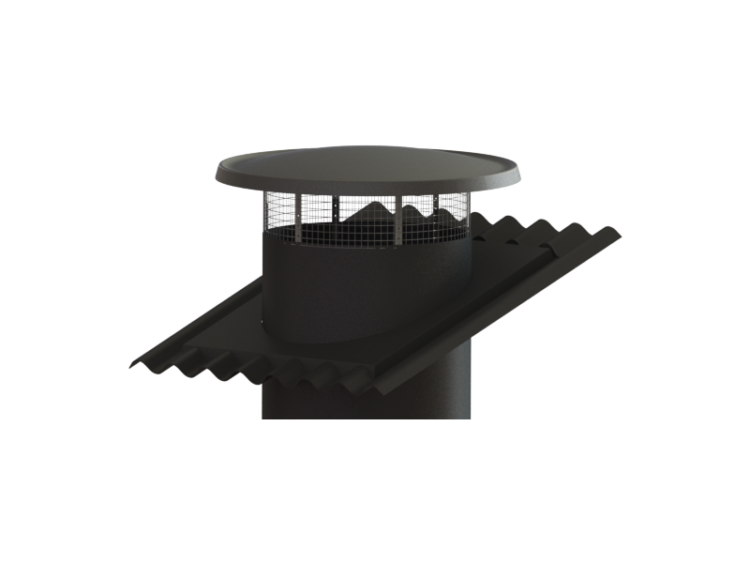

Bird wire around cap supports

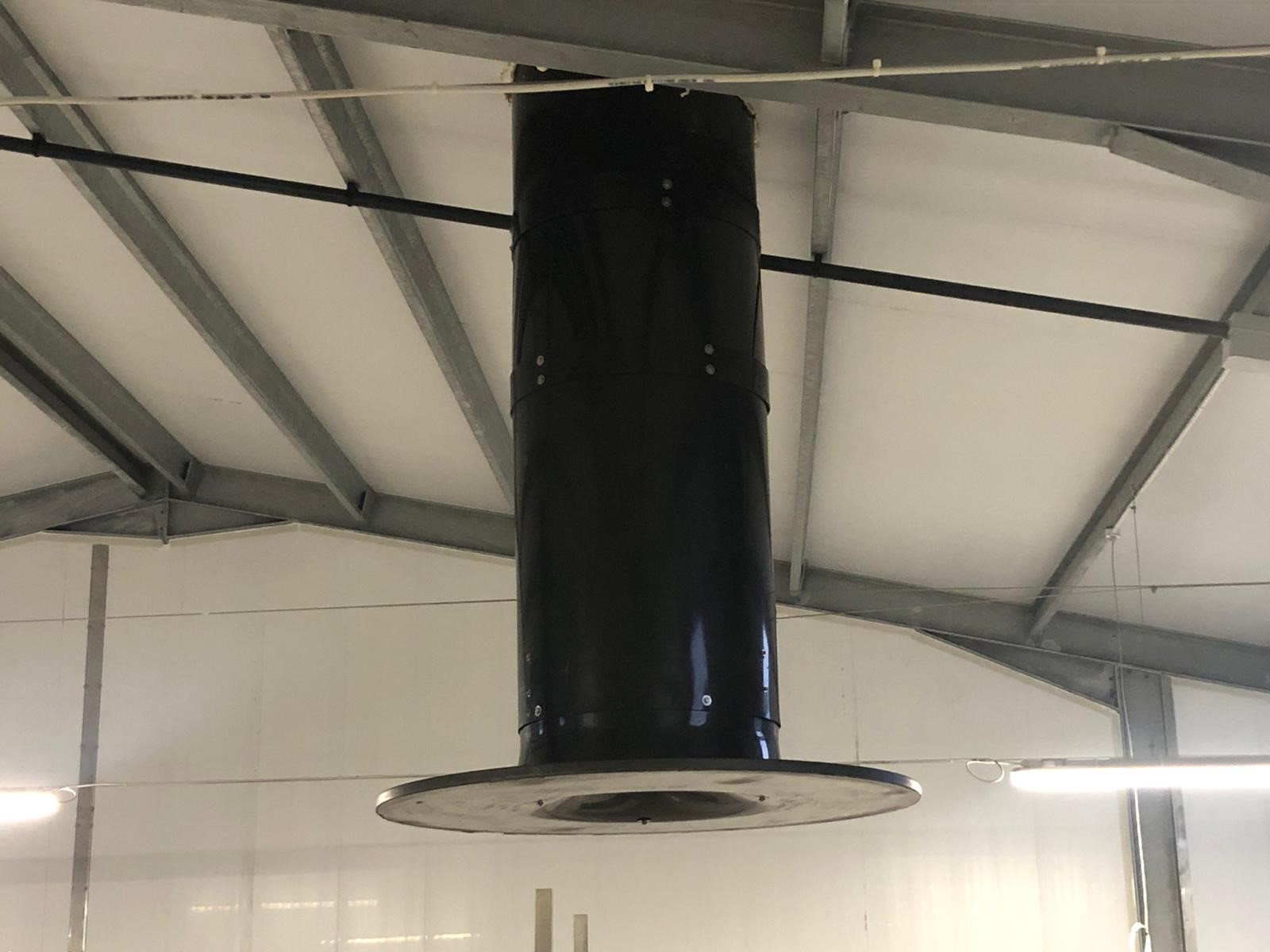

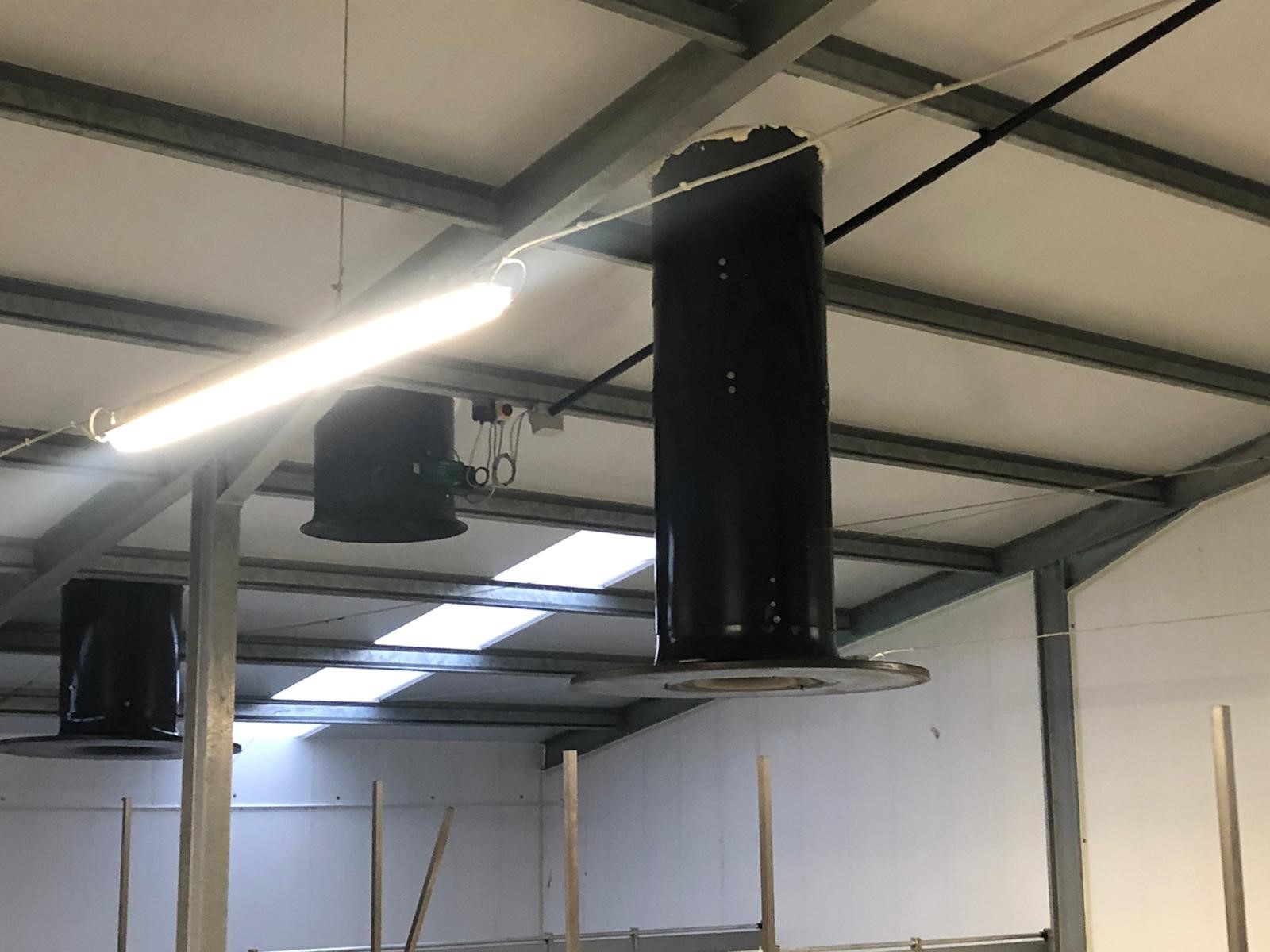

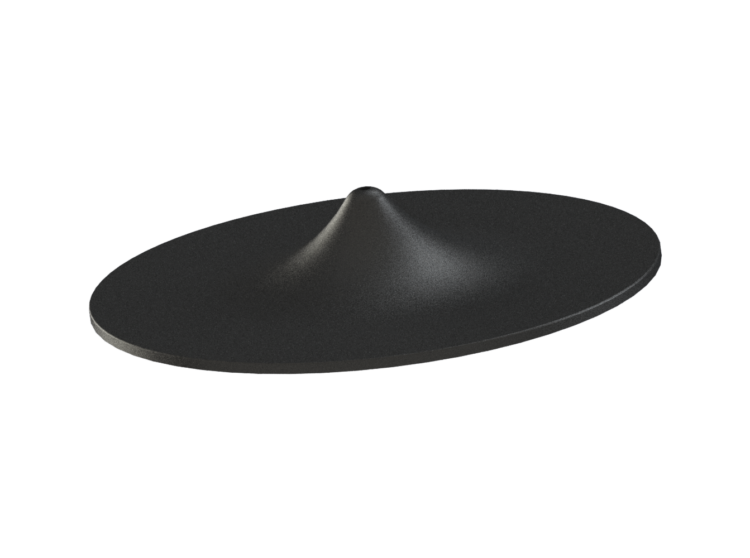

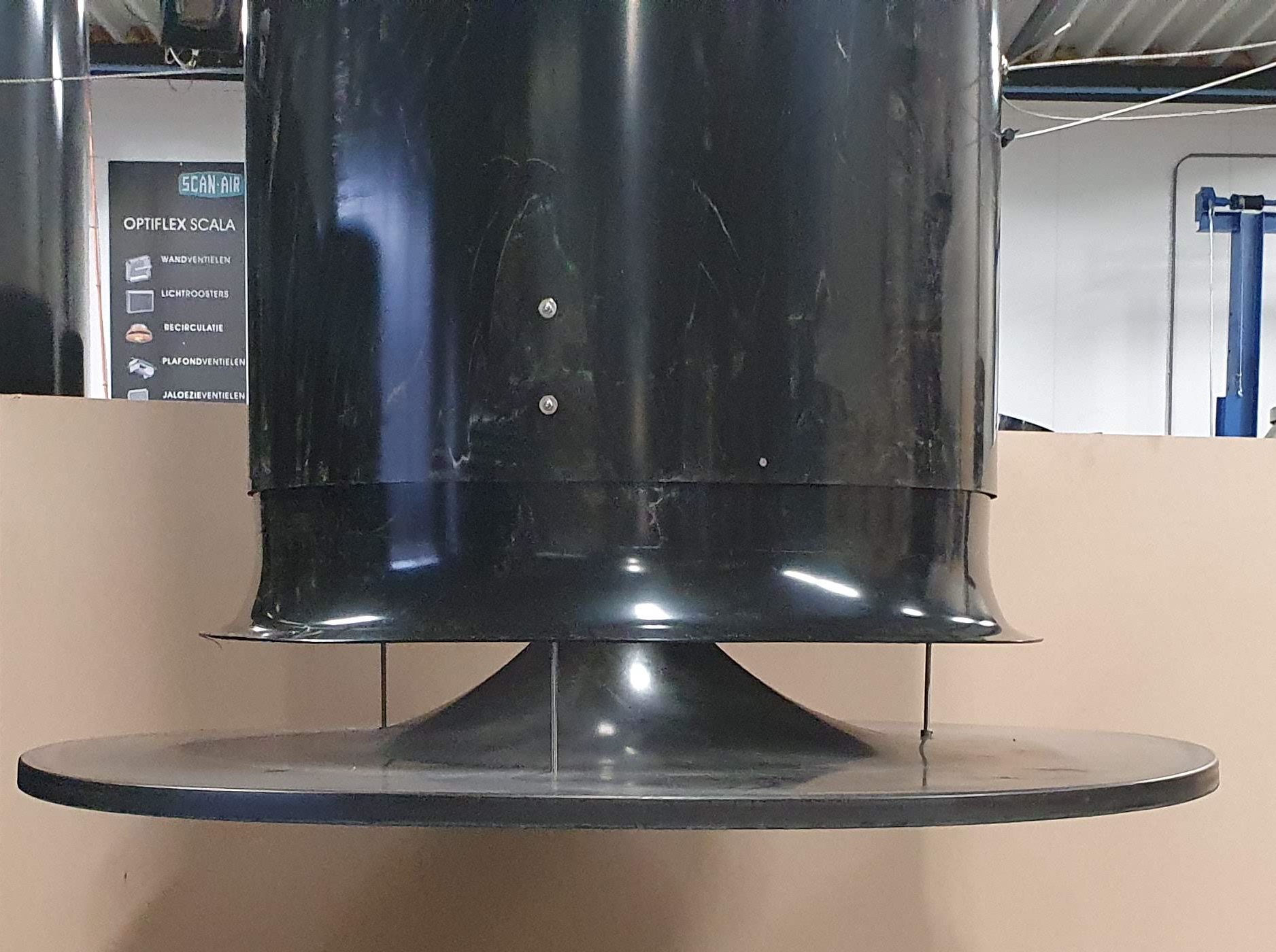

Distribution plate

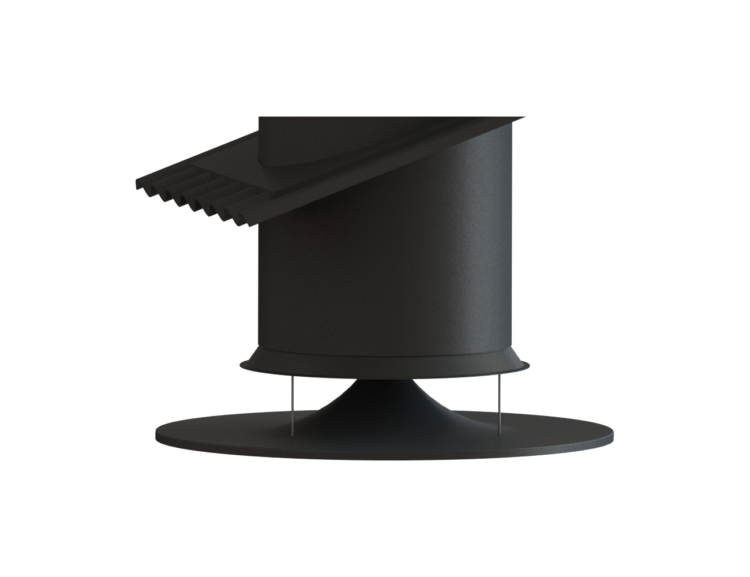

Winch kit for distribution plate

Damper

Outflow ring

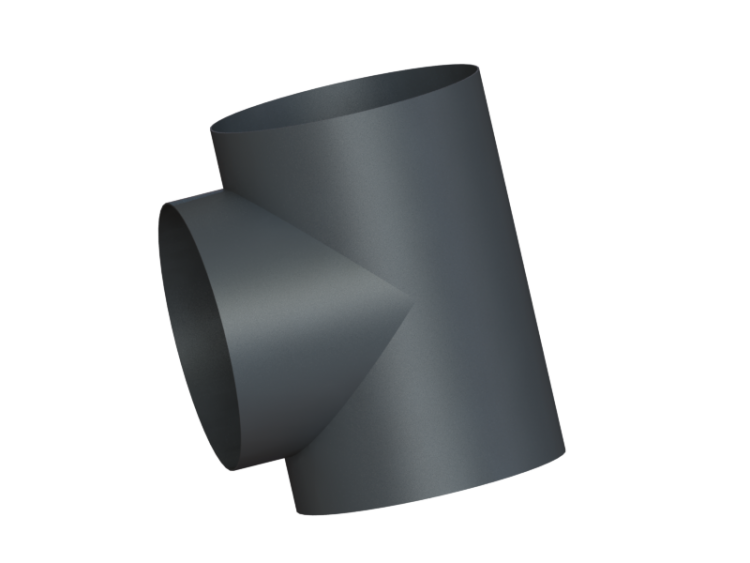

T-piece, elbow, etc.

Perforated tube

Available dimensions

Diameter 370-920 mm ø370/ø420/ø470/ø520/ø580/ø650/ø730/ø820/ø920 mm (internal)
Chimney length 1000-1500 mm 1000/1200/1500 mm

Online product configurator

Go to our online product configurator for all available models

Configure product (Exclusively for dealers)

Common models

Type Diameter (Internal) Capacity
10 Pa 20 Pa
ILK 370 370 mm 1350 (m3/hr) 1750 (m3/hr)
ILK 420 420 mm 1750 (m3/hr) 2300 (m3/hr)
ILK 470 470 mm 2150 (m3/hr) 2850 (m3/hr)
ILK 520 520 mm 2650 (m3/hr) 3500 (m3/hr)
ILK 580 580 mm 3300 (m3/hr) 4350 (m3/hr)
ILK 650 650 mm 4100 (m3/hr) 5400 (m3/hr)
ILK 730 730 mm 5250 (m3/hr) 6900 (m3/hr)
ILK 820 820 mm 6600 (m3/hr) 8700 (m3/hr)
ILK 920 920 mm 8300 (m3/hr) 11000 (m3/hr)
