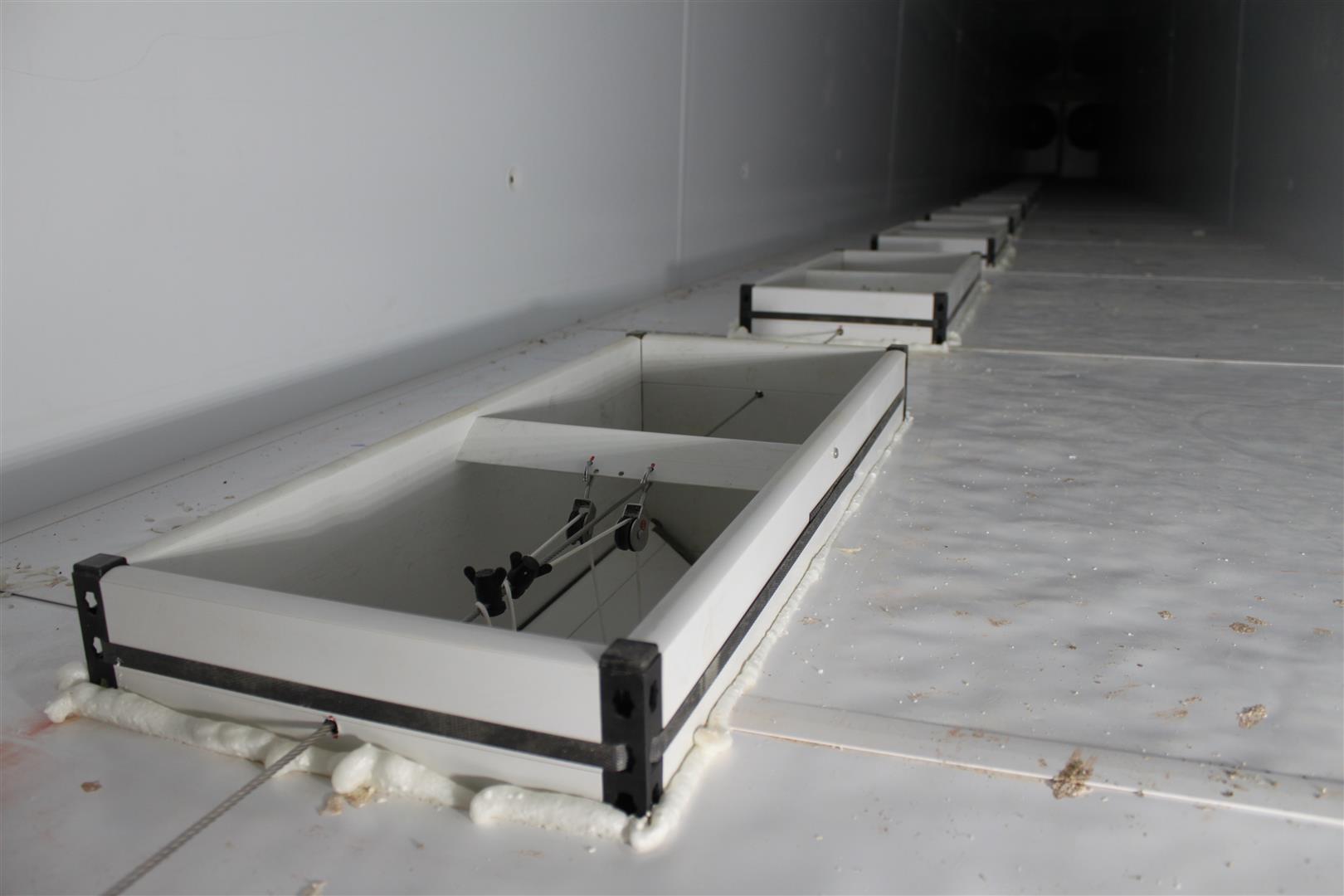

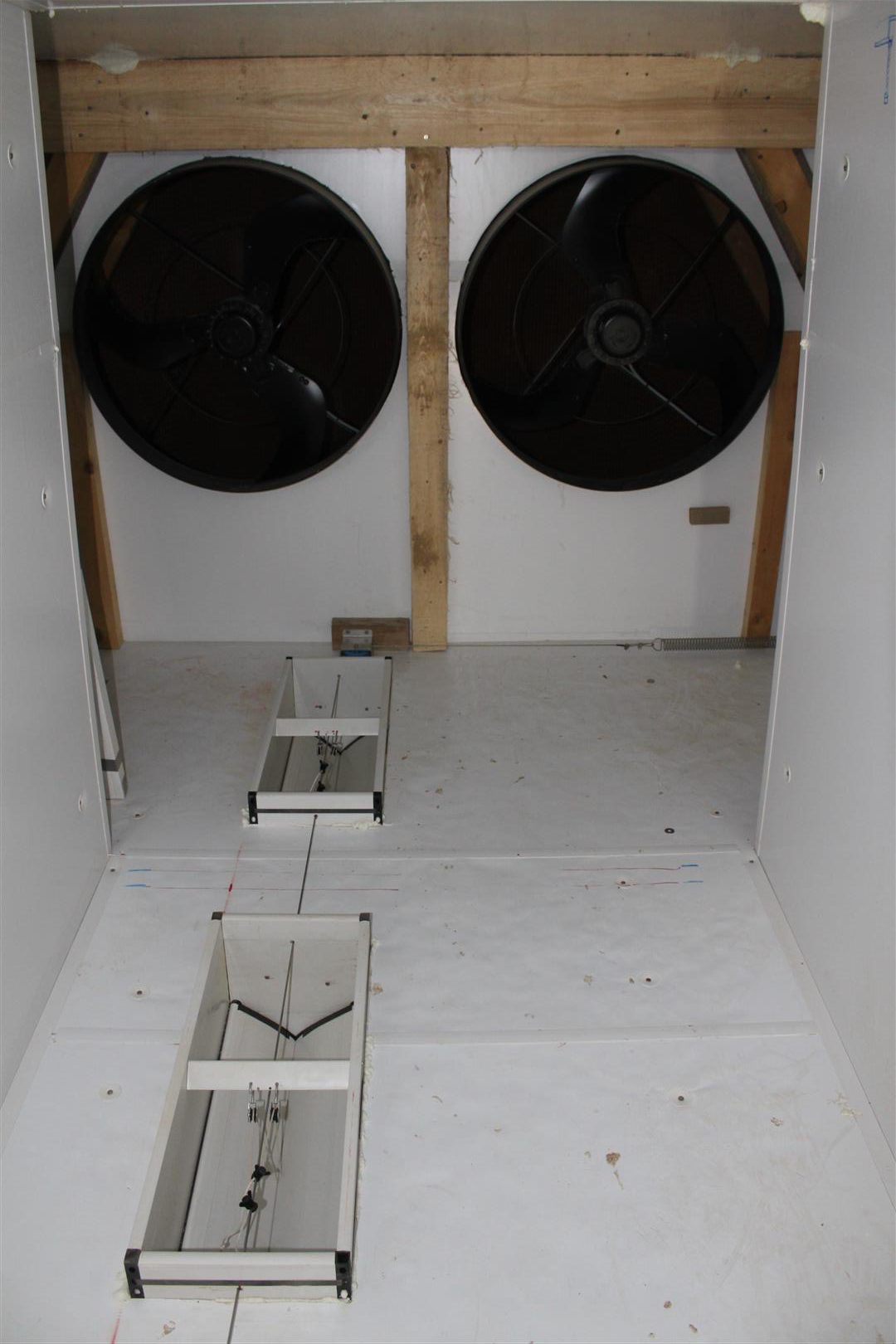

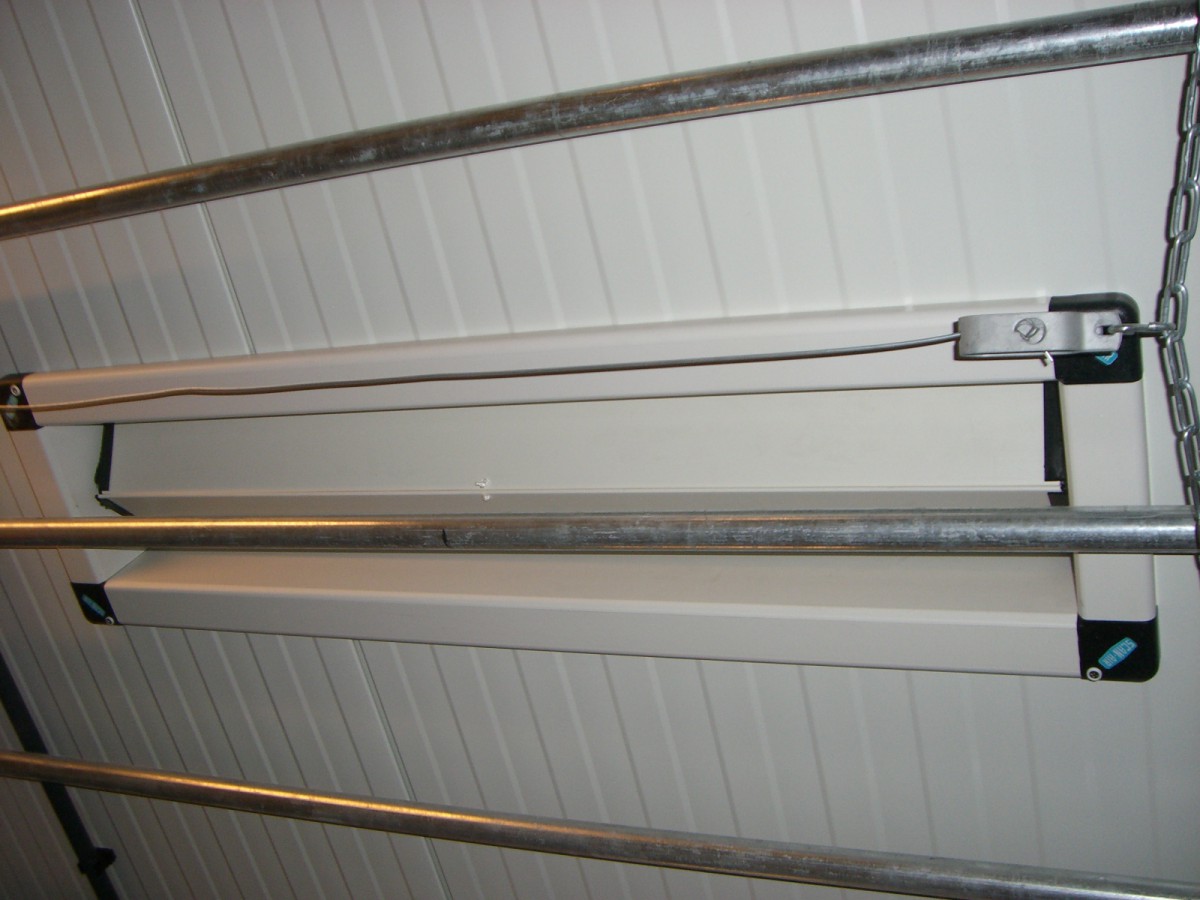

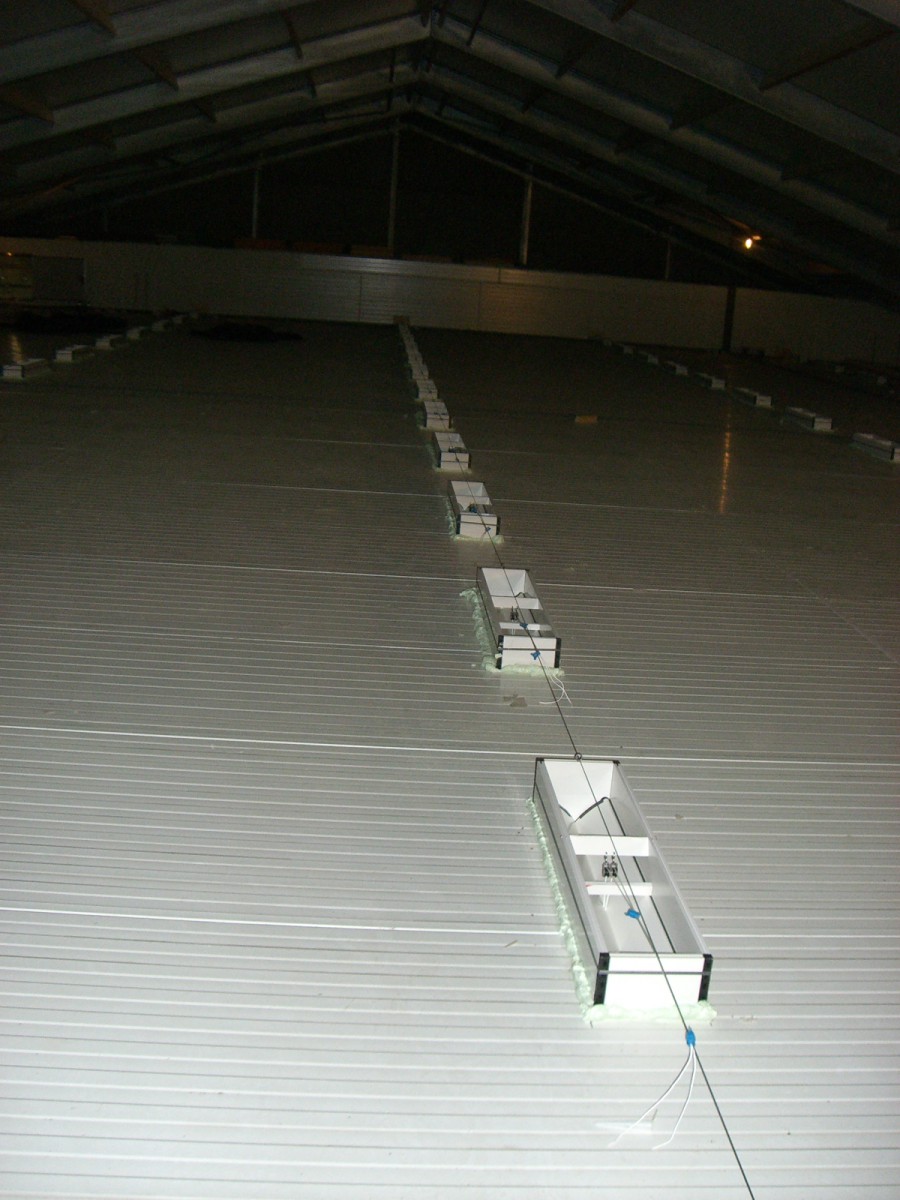

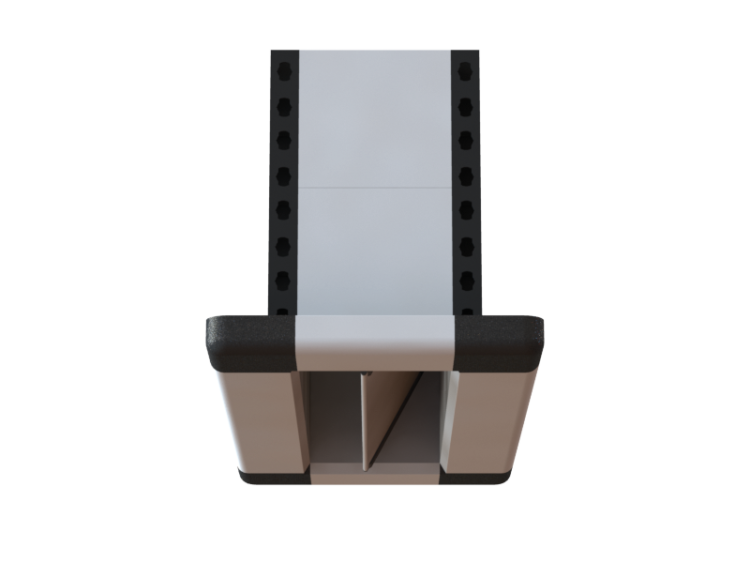

Benefits of Ceiling Inlet Vertical PVV

Vertical air control due to straight flap

Self-opening

Insulated flap

Options

Single

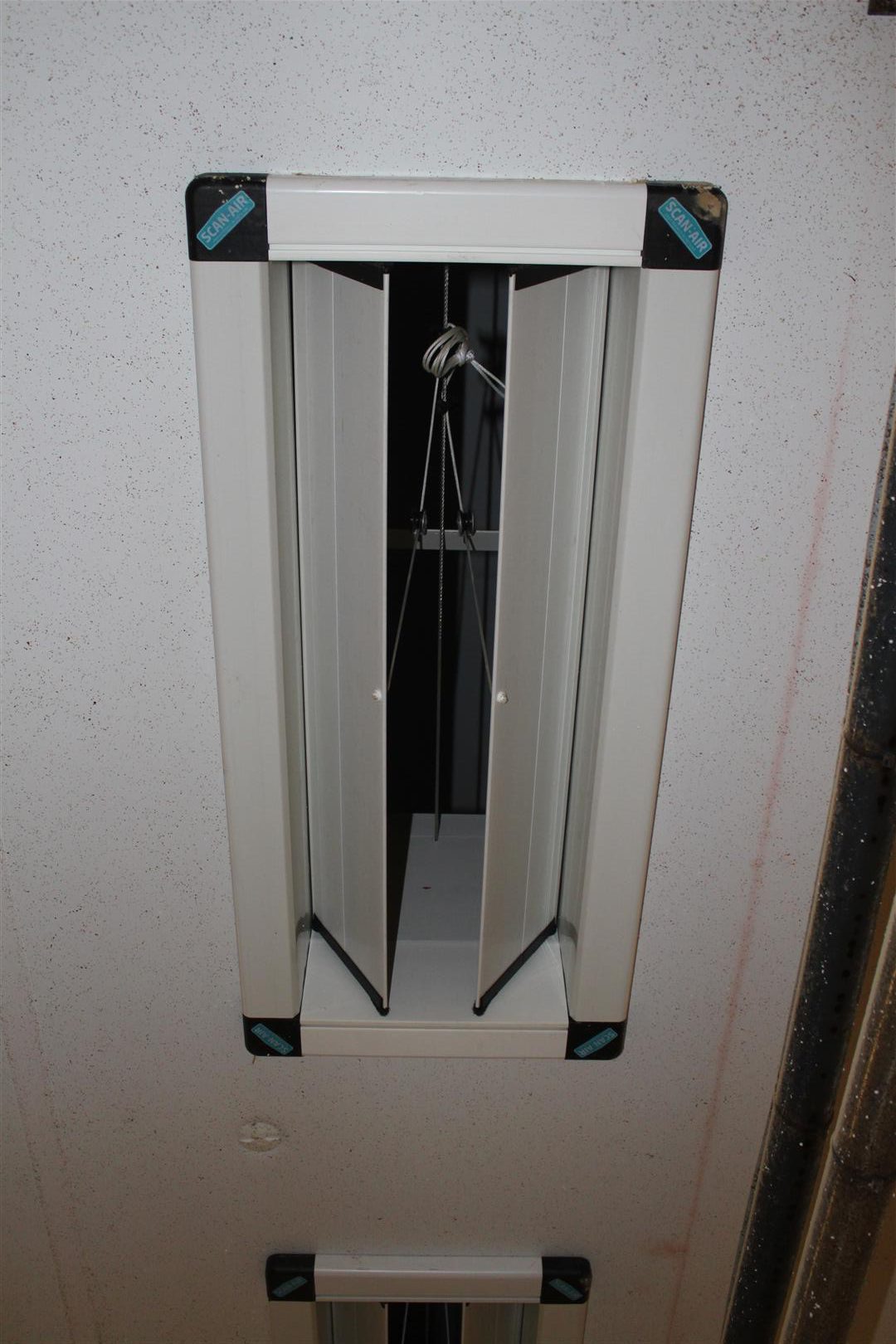

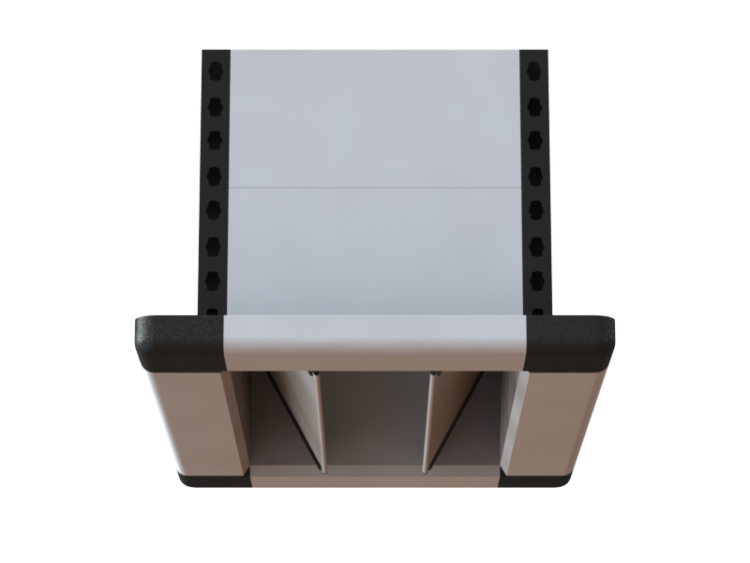

Double

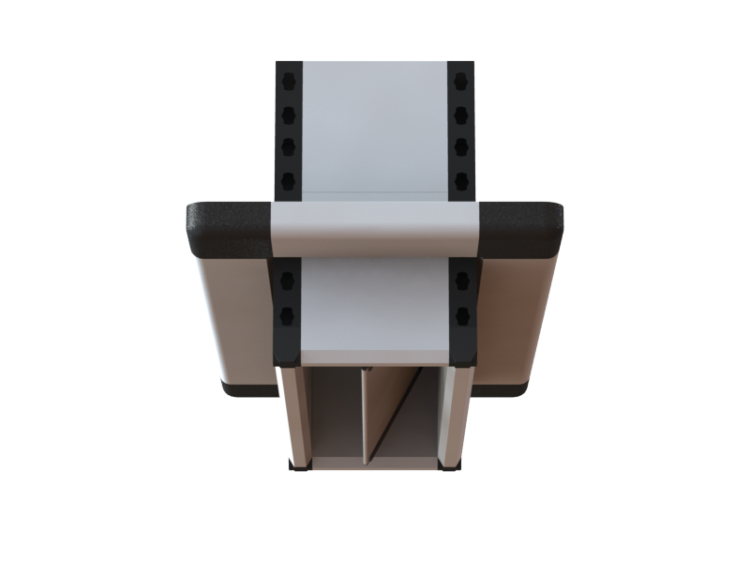

Single with telescopic flange

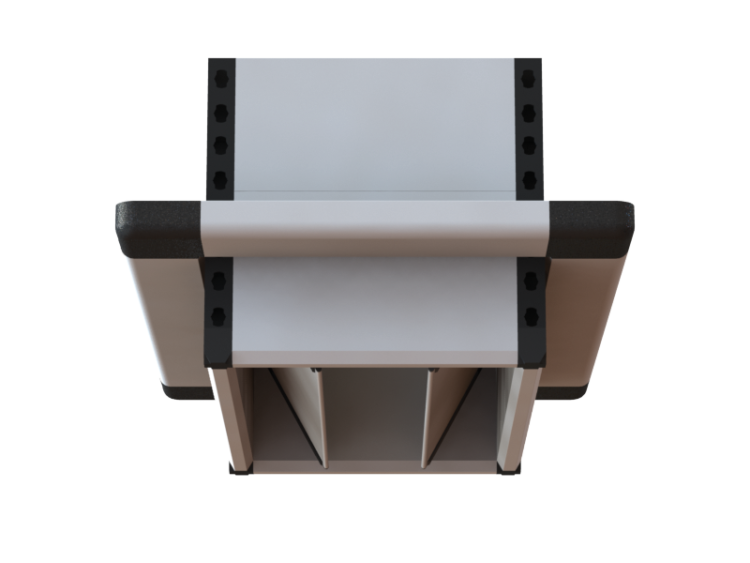

Double with telescopic flange

Available dimensions

Length 200-1120 mm In steps of 1 mm
Width 145-320 mm 145/180/240/320 mm
Height 200-500 mm In steps of 25 mm

Online product configurator

Go to our online product configurator for all available models

Configure product (Exclusively for dealers)

Common models

Type Installation dimensions Net surface Capacity Pull force Stroke length
L W H 10 Pa 20 Pa 30 Pa
PVV-E-800 600 mm 145 mm 200 mm 476 cm2 600 (m3/hr) 800 (m3/hr) - (m3/hr) 1 kg 100 mm
PVV-E-1500 800 mm 180 mm 200 mm 912 cm2 1150 (m3/hr) 1500 (m3/hr) - (m3/hr) 1,5 kg 140 mm
PVV-D-2000 800 mm 240 mm 200 mm 1216 cm2 1500 (m3/hr) 2000 (m3/hr) - (m3/hr) 2 kg 100 mm
PVV-D-3000 800 mm 320 mm 200 mm 1824 cm2 2300 (m3/hr) 3000 (m3/hr) - (m3/hr) 2,5 kg 140 mm
